W83178S

Features: · Supports Intel Pentium II CPUs for BX chipset· 13 SDRAM clocks for 3-DIMMs· Clock skew less than 250 pS· Almost none delay Buffer-in controlling SDRAM clocks(<4 nS propagation delay)· I2C 2-wire serial interface· Programmable registers to enable/stop each output· Incorporate with W8...

product image

W83178S Picture
See larger image
SeekIC No. : 004545091 Detail

W83178S: Features: · Supports Intel Pentium II CPUs for BX chipset· 13 SDRAM clocks for 3-DIMMs· Clock skew less than 250 pS· Almost none delay Buffer-in controlling SDRAM clocks(<4 nS propagation delay)·...

W83178S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W83178S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Supports Intel Pentium II CPUs for BX chipset
· 13 SDRAM clocks for 3-DIMMs
· Clock skew less than 250 pS
· Almost none delay Buffer-in controlling SDRAM clocks(<4 nS propagation delay)
· I2C 2-wire serial interface
· Programmable registers to enable/stop each output
· Incorporate with W83196S-14
· Packaged in 28-pin SOP


Pinout

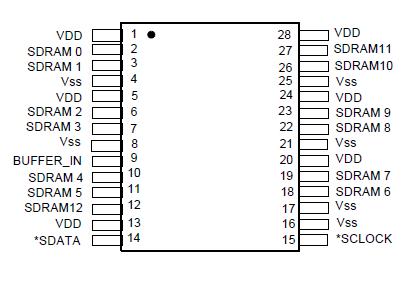

Connection Diagram


Specifications

PARAMETER SYMBOL RATING
Voltage on any pin with respect to GND VDD, VIN -0.5V to +7.0V
Storage Temperature TSTG -65° C to +150° C
Ambient Temperature TB -55° C to +125° C
Operating Temperature TA 0° C to +70° C
Note: Exposure to conditions beyond those listed under Absolute Maximum Ratings may adversely affect the life and reliability of the device.


Description



The W83178S is a 13 outputs SDRAM clock buffer for 3-DIMMs models incorporate with W83196S- 14 which is the clock synthesizer especially for the 100 MHz models such as Intel BX chipsets. (Refer the datasheet fo Winbond W83196S-14)

The W83178S receives the clock from chipset by the Buffer_In pin and provides almost zero-delay (less than 4 nS propagation delay) SDRAM buffer outputs for the 13 SDRAM clocks which are synchronous with the CPU clock outputs priovided by W83196S-14. The clock skew between any two clock outputs is less than 250 pS and the output buffer impedance is about 15 ohms.

The W83178S also provides I2C serial bus interface to program the registers to enable or disable each SDRAM clock outputs.
