W83176G-735

Features: • Zero-delay clock outputs• Feedback pins for synchronous• Supports up to 3 D.D.R. DIMMs• One pairs of additional outputs for feedback• Low Skew outputs (< 100ps)• Supports 400MHz D.D.R. SDRAM• I2C 2-Wire serial interface and supports Byte or ...

product image

W83176G-735 Picture
See larger image
SeekIC No. : 004545086 Detail

W83176G-735: Features: • Zero-delay clock outputs• Feedback pins for synchronous• Supports up to 3 D.D.R. DIMMs• One pairs of additional outputs for feedback• Low Skew outputs (<...

W83176G-735 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W83176G-735
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Zero-delay clock outputs
• Feedback pins for synchronous
• Supports up to 3 D.D.R. DIMMs
• One pairs of additional outputs for feedback
• Low Skew outputs (< 100ps)
• Supports 400MHz D.D.R. SDRAM
• I2C 2-Wire serial interface and supports Byte or Block Date RW
• 48-pin SSOP package


Pinout

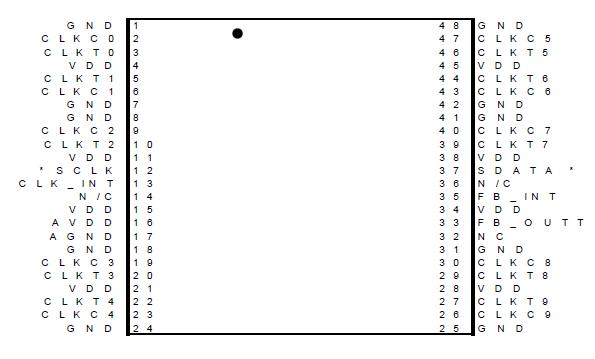

Connection Diagram


Specifications

SYMBOL PARAMETER RATING
VDD, AVDD Voltage on any pin with respect to GND - 0.5 V to + 3.6 V
TSTG Storage Temperature - 65°C to + 150°C
TB Ambient Temperature - 55°C to + 125°C
TA Operating Temperature 0°C to + 70°C



Description

The W83176R-735 is a 2.5V Zero-delay D.D.R. Clock buffer designed for SiS system. W83176R-735 can support 3 D.D.R. DRAM DIMMs.

The W83176R-735 provides I2C serial bus interface to program the registers to enable or disable each clock outputs. The W83176R-735 accepts a reference clock as its input and runs on 2.5V supply.
