W81E381D

Features: • Fully compliant with the Universal Serial Bus Specification version 1.1.• Support USB Suspend and Resume operation for power-down standby.• Support USB remote wake up function.• Embedded microprocessor--8052 with extra 256Bytes RAM for data processing/storage, 2...

product image

W81E381D Picture
See larger image
SeekIC No. : 004545080 Detail

W81E381D: Features: • Fully compliant with the Universal Serial Bus Specification version 1.1.• Support USB Suspend and Resume operation for power-down standby.• Support USB remote wake up f...

W81E381D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W81E381D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fully compliant with the Universal Serial Bus Specification version 1.1.
• Support USB Suspend and Resume operation for power-down standby.
• Support USB remote wake up function.
• Embedded microprocessor--8052 with extra 256Bytes RAM for data processing/storage, 20 Kbytes of In-System Programmable Flash memory.
• Internal generated 12MHz clock for 8052 use (the same as standard 8052 uses 24 MHz clock outside)
• External and separated 8052 clock input supported
• 6 clock per instruction 8052 core
• Flash support 512Byte erase block
• Software setting, 2KByte block programmable write protection for Flash memory
• 6-Mhz crystal/oscillator input for both Full speed application with limited EMI affection
• Support smart card interface, including serial interface memory card, and SCIO & SCCLK pins could be programmed as GPIO pins by registers setting
• Built-in 3.3V power regulator for single 5V power operation
• Internal PLL for USB and SC requirements
• Support one Control endpoint for command (8 bytes), and four endpoints 1, 2, 3, 4 (Bulk In, Bulk Out Interrupt In, and Interrupt Out) for data.
􀂃 BulkIn, BulkOut with 16 bytes FIFO
􀂃 InterruptIn, InterruptOut with 8 bytes FIFO
• W81E381D: 48LQFP package
• W81E381AD: 100LQFP package


Pinout

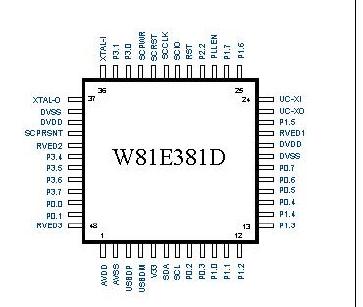

Connection Diagram


Description

The W81E381 is 8052-based USB device with 20 Kbytes flash memory. By integrating the USB1.1 transceiver, SIE, enhanced 8032 code, 20K Flash memory, extra 256 Byte RAM, power regulator, and general purpose I/O in single chip, W81E381D/W81E381AD creates a very low cost-effective solution that provides superior time-to-market advantages. The GPIO provides an easy interface to popular interface, such as ATAPI, EPP, RS232, MCU and DSP interface.
