W81181D

Features: · Full compliance with USB spec Rev 1.1 and HID Class Definition Rev 1.0· Compliance with USB Hub spec Rev 1.1· Support multiple endpoints for standalone hub with attached function· Embedded microprocessor--8052 ( 6K ROM + 256 Byte RAM)· Support auto-detected two power source mode betwee...

product image

W81181D Picture
See larger image
SeekIC No. : 004545072 Detail

W81181D: Features: · Full compliance with USB spec Rev 1.1 and HID Class Definition Rev 1.0· Compliance with USB Hub spec Rev 1.1· Support multiple endpoints for standalone hub with attached function· Embedd...

W81181D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W81181D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  Full compliance with USB spec Rev 1.1 and HID Class Definition Rev 1.0
·  Compliance with USB Hub spec Rev 1.1
·  Support multiple endpoints for standalone hub with attached function
·  Embedded microprocessor--8052 ( 6K ROM + 256 Byte RAM)
·  Support auto-detected two power source mode between bus power mode and self power mode.
·  12-MHz crystal/oscillator input to lower EMI (W81181D)
·  48-Mhz oscillator input for motherboard application (W81181AD)
·  Support Suspend and Resume operation
·  Four downstream ports with per port overcurrent protection
·  Two endpoints for hub (Control and Interrupt)
·  LED display supports bright/blinking alternative for port enable and OCP(over current protection) flags
·  Single 5V supplied with embedded 5V-3.3V regulator
·  Three endpoints for attached device (one Control and two Interrupt)
·  Provides the external pull-up resistor control for the up-stream connection.
·  Perport/Global downstream port power control optional
·  Packaged in 48-pin LQFP
·  5V CMOS device


Pinout

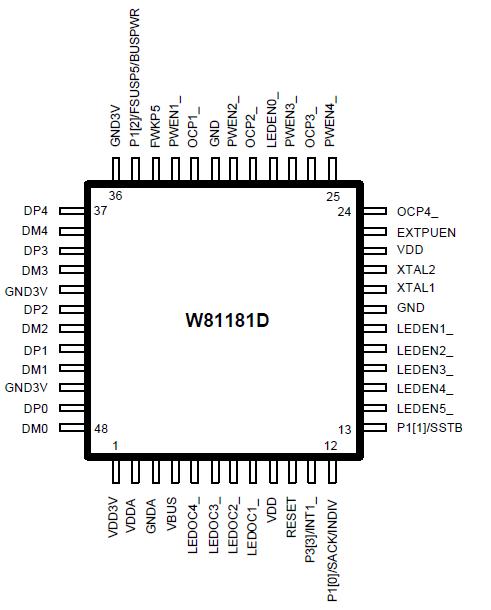

Connection Diagram


Specifications

PARAMETER LIMIT
Supply Voltage (Vcc to Vss) 5.5V
Analog Input Voltage Vss -0.5V to Vcc +0.5V
Digital Input Voltage Vss -0.5V to Vcc +0.5V
Power Dissipation TBD
Ambient Operating Temperature 0to 70
Lead Temperature (Soldering, 10 sec) 250
Note: Exposure to conditions beyond those listed under Absolute Maximum Ratings may adversely affect the life and reliability of the device.


Description

W81181D, an high integrated 4 port USB hub controller which integrates a microcontroller, implements a medium speed (12 MHz) and slow speed (1.5 MHz) Universal Serial Bus (USB) hub control interface. It supports one upstream, four downstream ports and a serial interface. W81181D can be act as multifunction USB device. For example, the whole system can be designed as an USB HUB plus an USB mouse or an USB HUB plus an IR receiver, and no down stream port be occupied as well as no other component needed.

W81181D acts as an USB hub controller and a hub repeater at the direction of an internal microcontroller. W81181D controls the traffic among the host, four downstream ports, and the microprocessor. As a hub controller, it can enable/disable ports, send and receive resets, and detect devices of high or low speeds. The W81181D contains three function endpoints and two hub endpoints to allow both USB Control and Interrupt Transfers between the host and microcontroller.
W81181D is a compound USB device (hub with embedded function attached) with totally five downstream ports. W81181D can be used as a hub controller in a standalone hub with attached function or a microcontroller based USB device with hub function.
