W78C374

Features: · 80C31 MCU Core Embedded· 32K Bytes MTP-ROM (W78E378)· 32K Bytes Mask-ROM (W78C378)· 16K Bytes Mask-ROM (W78C374B)· Total 576 Bytes of On-chip Data RAM- 256 bytes accessed as in the 80C32- 320 bytes accessed as external data memory via MOVX @Ri · PWM DACs- Eight 8-bit Static PWM DACs: ...

product image

W78C374 Picture
See larger image
SeekIC No. : 004544982 Detail

W78C374: Features: · 80C31 MCU Core Embedded· 32K Bytes MTP-ROM (W78E378)· 32K Bytes Mask-ROM (W78C378)· 16K Bytes Mask-ROM (W78C374B)· Total 576 Bytes of On-chip Data RAM- 256 bytes accessed as in the 80C32...

W78C374 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W78C374
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 80C31 MCU Core Embedded
· 32K Bytes MTP-ROM (W78E378)
· 32K Bytes Mask-ROM (W78C378)
· 16K Bytes Mask-ROM (W78C374B)
· Total 576 Bytes of On-chip Data RAM
- 256 bytes accessed as in the 80C32
- 320 bytes accessed as external data memory via "MOVX @Ri"
· PWM DACs
- Eight 8-bit Static PWM DACs: DAC0-DAC8
- Three 8-bit Dynamic PWM DACs: DAC9-DAC10
· Sync Processor
- Horizontal & Vertical Polarity Detector
- Sync Separator for Composite Sync
- 12-bit Horizontal & Vertical Frequency Counter
- Programmable Dummy Frequency Generator
- Programmable H-clamp Pulse Output
- SOA Interrupt
- Hsync/2 Output
· Serial Ports:
- DDC1 Port- support DDC1
- SIO1 & SIO2 Ports - each can support DDC2B/2B+/2Bi/2AB (each has 2 slave addresses)
· Two 16-bit Timer/Counters (8031's Timer0 & Timer1)
· One External Interrupt Input (8031's INT0 )
· One Parabola Interrupt Generator
· One ADC with 7 Multiplexed Analog Inputs
· Two 12 mA(min) Output Pins for Driving LEDs
· Watchdog Timer (222/Fosc = 0.42s @Fosc = 10 MHz)
· Power Low Reset
· Frequency: 10 MHz max. (with the same performance as a normal 8051 that uses 20 MHz)
· Packaged in 40/32-pin 600 mil DIP & 44-pin PLCC


Pinout

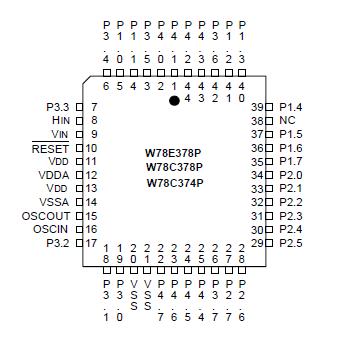

Connection Diagram


Specifications

PARAMETER
SYMBOL
MIN.
MAX.
UNIT
DC Power Supply
VDD-VSS
-0.3
+7.0
V
Input Voltage
VIN
VSS -0.3
VDD +0.3
V
Input Current

 IIN

 -100

 +100

 mA

Operating Temperature
TA
0
70
°C
Storage Temperature
TST
-55
+150
°C
Note: Exposure to conditions beyond those listed under Absolute Maximum Ratings may adversely affect the life and reliability of the device.


Description

The W78E378, W78C378 and W78C374B are ASIC which is a stand-alone high-performance microcontroller specially designed for monitor control applications. The device integrates the embedded 80C31 microcontroller core, on-chip MTP or Mask ROM, 576 bytes of RAM, and a number of dedicated hardware monitor functions. Additional special function registers are incorporated to control the on-chip peripheral hardware. The chip is used to control the interface signal of other devices in the monitor and to process the video sync signals. Because of the highly integration and Flash cell for program memory, the device can offer users the competitive advantages of low cost and reduced development time.
