W77LE532

Features: • 8-bit CMOS microcontroller• High speed architecture of 4 clocks/machine cycle runs up to 25 MHz• Pin compatible with standard 80C52• Instruction-set compatible with MCS-51• Four 8-bit I/O Ports• One extra 4-bit I/O port and Wait State control signal ...

product image

W77LE532 Picture
See larger image
SeekIC No. : 004544971 Detail

W77LE532: Features: • 8-bit CMOS microcontroller• High speed architecture of 4 clocks/machine cycle runs up to 25 MHz• Pin compatible with standard 80C52• Instruction-set compatible wi...

W77LE532 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W77LE532
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 8-bit CMOS microcontroller
• High speed architecture of 4 clocks/machine cycle runs up to 25 MHz
• Pin compatible with standard 80C52
• Instruction-set compatible with MCS-51
• Four 8-bit I/O Ports
• One extra 4-bit I/O port and Wait State control signal (available on 44-pin PLCC/QFP package)
• Three 16-bit Timers
• 12 interrupt sources with two levels of priority
• On-chip oscillator and clock circuitry
• Two enhanced full duplex serial ports
• Dula 64KB In-System Programmable Flash EPROM banks (APFLASH0 and APFLASH1)
• 4KB Auxiliary Flash EPROM for loader program (LDFLASH)
• 256 bytes scratch-pad RAM
• 1 KB on-chip SRAM for MOVX instruction
• Programmable Watchdog Timer
• Software Reset
• Dual 16-bit Data Pointers
• Software programmable access cycle to external RAM/peripherals
• Packages:
   − DIP 40: W77LE532-25
   − PLCC 44: W77LE532P-25
   − QFP 44: W77LE532F-25


Pinout

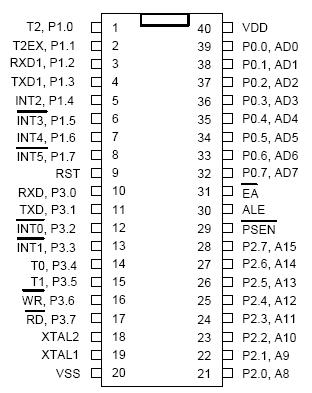

Connection Diagram


Specifications

PARAMETER SYMBOL CONDITION RATING UNIT
DC Power Supply VDD-VSS -0.3 +7.0 V
Input Voltage VIN VSS -0.3 VDD +0.3 V
Operating Temperature TA 0 +70 °C
Storage Temperatute Tst -55 +150 °C



Description

The W77LE532 is a fast 8051 compatible microcontroller with a redesigned processor core without wasted clock and memory cycles. As a result, it executes every 8051 instruction faster than the original 8051 for the same crystal speed. Typically, the instruction executing time of W77LE532 is 1.5 to 3 times faster then that of traditional 8051, depending on the type of instruction. In general, the overall performance is about 2.5 times better than the original for the same crystal speed. Giving the same throughput with lower clock speed, power consumption has been improved. Consequently, the W77LE532 is a fully static CMOS design; it can also be operated at a lower crystal clock. The W77LE532 contains In-System Programmable(ISP) 128 KB bank-addressed Flash EPROM; 4KB auxiliary Flash EPROM for loader program; operating voltage from 4.5V to 5.5V; on-chip 1 KB MOVX SRAM; three power saving modes
