W741L260

Features: · Operating voltage: 1.2V to 1.8V (LCD drive voltage: 3.0V, or 4.5V)· Operating frequency up to 1 MHz· Crystal/RC oscillation circuit selectable by code option for system clock· 32.768 KHz crystal oscillation circuit for sub -oscillator· Only low -frequency clock (32.768 KHz) for crystal...

product image

W741L260 Picture
See larger image
SeekIC No. : 004544939 Detail

W741L260: Features: · Operating voltage: 1.2V to 1.8V (LCD drive voltage: 3.0V, or 4.5V)· Operating frequency up to 1 MHz· Crystal/RC oscillation circuit selectable by code option for system clock· 32.768 KHz...

W741L260 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W741L260
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operating voltage: 1.2V to 1.8V (LCD drive voltage: 3.0V, or 4.5V)
· Operating frequency up to 1 MHz
· Crystal/RC oscillation circuit selectable by code option for system clock
· 32.768 KHz crystal oscillation circuit for sub    -oscillator
· Only low    -frequency clock (32.768 KHz) for crystal mode
· Memory
    - 2048 ´ 16 bit program ROM (including 2K ´ 4 bit look    -up table)
    - 128 ´ 4 bit data RAM (including 16 working registers)
    - 32 ´ 4 LCD data RAM
· 21 input/output pins
    - Ports for input only: 2 ports/8 pins
    - Input/output ports: 2 ports/8 pins
    - Port for output only: 1 port /4 pins (high sink current)
    - MFP output pin: 1 pin (MFP)
· Power    -down mode
    - Hold function: no operation (except for oscillator)
· Five types of interrupts
    - Four internal interrupts (Divider 0, Divider 1, Timer 0, Timer 1)
    - One external interrupt (Port RC)
· LCD driver output
    - 32 segment ´ 4 common
    - Static, 1/2 duty (1/2 bias), 1/3 duty (1/2 or 1/3 bias), 1/4 duty (1/3 bias) driving mode can be selected
    - LCD driver output pins can be used as DC output ports; selectable by code option


Pinout

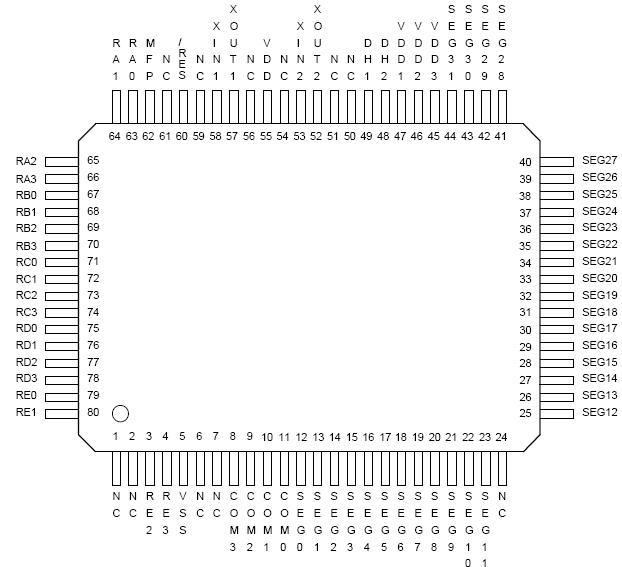

Connection Diagram


Specifications

PARAMETER RATING UNIT
Supply Voltage to Ground Potential -0.3 to +7.0 V
Applied Input/Output Voltage -0.3 to +7.0 V
Power Dissipation 120 mW
Ambient Operating Temperature 0 to +70 °C
Storage Temperature -55 to +150 °C



Description

The W741L260 is a high-performance 4-bit microcontroller (mC) with an LCD driver. The device contains a 4-bit ALU, two 8-bit timers, two dividers, a 32 ´ 4 LCD driver, and five 4-bit I/O ports (including one high sink current output port). There are also five interrupt sources and 8-level subroutine nesting for interrupt applications. The W741L260 has one power reduction mode to help minimize power dissipation.

The W741L260 has two oscillator circuits and can work in dual-clock or single-clock operation mode. It is suitable for handheld games, watches, clocks, speech synthesis LSI controllers, and other products.
