W65C816S

Features: · Advanced fully static CMOS design for low power consumption and increased noise immunity· Wide operating voltage range, 1.8+/- 5%, 2.5+/- 5%, 3.0+/- 5%, 3.3+/ - 10%, 5.0+/- 5% specified for use with advanced low voltage peripherals· Emulation mode allows complete hardware and software ...

product image

W65C816S Picture
See larger image
SeekIC No. : 004544894 Detail

W65C816S: Features: · Advanced fully static CMOS design for low power consumption and increased noise immunity· Wide operating voltage range, 1.8+/- 5%, 2.5+/- 5%, 3.0+/- 5%, 3.3+/ - 10%, 5.0+/- 5% specified ...

W65C816S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W65C816S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  Advanced fully static CMOS design for low power
     consumption and increased noise immunity
·  Wide operating voltage range, 1.8+/- 5%, 2.5+/- 5%,
     3.0+/- 5%, 3.3+/ - 10%, 5.0+/- 5% specified for use
     with advanced low voltage peripherals
·  Emulation mode allows complete hardware and
     software compatibility with 6502 designs
·  24-bit address bus provides access to 16 MBytes ofmemory space
·  Full 16-bit ALU, Accumulator, Stack Pointer and Index Registers
·  Valid Data Address (VDA) and Valid Program
     Address (VPA) output for dual cache and cycle steal
     DMA imple mentation
·  Vector Pull (VPB) output indicates when interrupt vectors are being addressed
·  Abort (ABORTB) input and associated vector supports processor repairs of bus error conditions
·  Low power consumption (300uA@1MHz)
·  Separate program and data bank registers allow
     program segmentation or full 16 MByte linear addressing
·  New Direct Register and stack relative addressing
     provides capability for re-entrant, re-cursive and relocatable programming
·  24 addressing modes - 13 original 6502 modes with 92 instructions using 256 OpCodes
·  Wait-for-Interrupt (WAI) and Stop-the-Clock (STP)
     instructions further reduce power consumption,
     decrease interrupt latency and allows synchronization with external events
·  Co-Processor (COP) instruction with associated vector
     supports co-processor configurations, i.e., floating point processors
·  Block move ability


Pinout

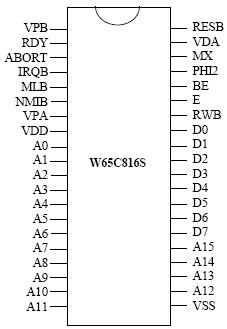

Connection Diagram


Specifications

Rating Symbol Value
Supply Voltage VDD -0.3 to +7.0V
Input Voltage VIN -0.3 to VDD +0.3V
Storage Temperature TS -55°C to +150°C



Description

The W65C816S provides the design engineer with upward software compatibility from 8-bit W65C02 in applications to 16-bit system application. In Emulation mode, the W65C816S offers many advantages, including full software compatibility with 6502 coding.

Internal organization of the W65C816S can be divided into two parts: 1) The Register Section and 2) The Control Section. Instructions obtained from program memory are executed by implementing a series of data transfers within the Register Section. Signals that cause data transfers to be executed are generated within the Control Section. The W65C816S has a 16-bit internal bus architecture with an 8-bit external data bus and 24-bit external address bus.
