W583L10

Features: • Programmable speech synthesizer• 5bit MDPCM algorithm to generate high sound quality• Operating voltage range: 1.8 3.6 Volts• Direct drive speaker by PWM output or Built-in 8-bit D/A converter• Supports CPU interface operation• IR interface for comm...

product image

W583L10 Picture
See larger image
SeekIC No. : 004544862 Detail

W583L10: Features: • Programmable speech synthesizer• 5bit MDPCM algorithm to generate high sound quality• Operating voltage range: 1.8 3.6 Volts• Direct drive speaker by PWM output ...

W583L10 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W583L10
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Programmable speech synthesizer
• 5bit MDPCM algorithm to generate high sound quality
• Operating voltage range: 1.8 3.6 Volts
• Direct drive speaker by PWM output or Built-in 8-bit D/A converter
• Supports CPU interface operation
• IR interface for command Transmission and Receiving
• Symbolic compiler supported
• Instruction cycle 400 S typically
• Section control
− Variable frequency: 4.8/6/8/12 KHz
− LED: ON/OFF
• Eight general-purpose registers R0-R7
• Pad option for Ring or Crystal oscillator. (W583L10 only provides Ring oscillator)
• 8 trigger inputs - with separate control of falling/rising edge trigger. (4 triggers for W583L10)
• 8 STOP outputs (5 outputs for W583L10)
• Number of interrupt vector / label up to 2,048


Pinout

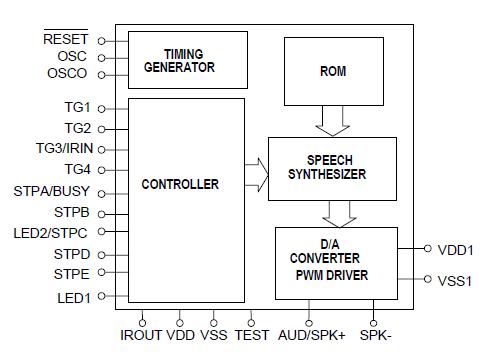

Connection Diagram


Specifications

PARAMETER
SYMBOL
CONDITIONS
RATED VALUE
UNIT
Power Supply
VDD−VSS
-
-0.3 to +7.0
V
Input Voltage
VIN
All Inputs
VSS -0.3 to VDD +0.3
V
Storage Temp.
TSTG
-
-55 to +150
°C
Operating Temp.
TOPR
-
0 to +70
°C
Note: Exposure to conditions beyond those listed under Absolute Maximum Ratings may adversely affect the life and reliability of the device.


Description

W583L10 family is a new PowerSpeech™synthesizer series with 1.8V ~ 3.6V operation voltage range. W583L10 provides IR function, CPU interface, PAD option for Ring or Crystal oscillator and voice output in DAC current or PWM type.
