W58100

Features: · Wide operating voltage range: 2.4 to 5.5 volts· Serves as a demo chip for W581xx series products (no built-in ROM)· Programmable speech synthesizer· 4-bit ADPCM synthesis method and 8-bit D/A converter· Maximum 4 trigger inputs· Fading effect (patent pending) control for each voice seg...

product image

W58100 Picture
See larger image
SeekIC No. : 004544859 Detail

W58100: Features: · Wide operating voltage range: 2.4 to 5.5 volts· Serves as a demo chip for W581xx series products (no built-in ROM)· Programmable speech synthesizer· 4-bit ADPCM synthesis method and 8-bi...

W58100 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W58100
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Wide operating voltage range: 2.4 to 5.5 volts
· Serves as a demo chip for W581xx series products (no built-in ROM)
· Programmable speech synthesizer
· 4-bit ADPCM synthesis method and 8-bit D/A converter
· Maximum 4 trigger inputs
· Fading effect (patent pending) control for each voice segment
· Maximum two LEDs, and five STOP outputs
· Flexible functions programmable through the following:
   - LD (load), JP (jump) commands
   - 8 general registers: R0-R7
   - Three special registers: EN, STOP, and MODE
   - Conditional instructions
   - Speech equation
· Programmable power-on initialization (POI), which can be interrupted by trigger inputs
· Interrupt or non-interrupt for rising or falling edge of each trigger pin
  (this feature determines retriggerable, non-retriggerable, overwrite,
  and non-overwrite features of each trigger pin)
· LED On/Off control can be set independently in each GO instruction of speech equations
· Independent control of LED 1 and LED 2
· Total of 256 voice group entries available for programming
  (Including eight hardware and 248 software group entry points)
· CPU interface
· The following mask options are available:
   - LED flash type: synchronous/alternate
   - LED1 section-controlled: Yes/No
   - LED2 section-controlled/STPC-controlled
   - LED volume controlled: No/Yes
   - Normal/CPU mode
   - STPE or BUSY selection
· The following register controls are available:
   - Trigger input debounce time: Long/Short
   - Pin option for LED2/STPC
   - LED turn-on mode: Flash/DC


Pinout

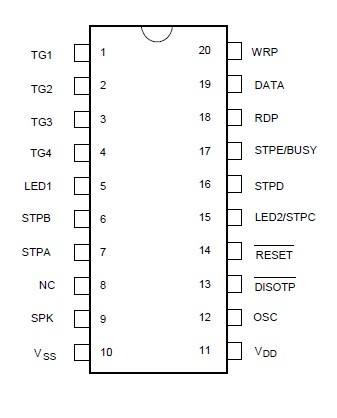

Connection Diagram


Specifications

PARAMETER

SYMBOL

CONDITIONS

RATED

UNIT

Power Supply

VDD-VSS

-

-0.3 to +7.0

V

Input Voltage

VIN

All Inputs

VSS -0.3 to VDD +0.3

V

Storage Temp.

TSTG

-

-55 to +150

°C

Operating Temp.

TOPR

-

0 to +70

°C




Description

The W58100 is a CMOS IC that is used solely for the purpose of demonstrating the W581xx series enhanced PowerSpeechä products.

The W58100 employs the same JUMP-GO architecture as Winbond's other PowerSpeechä products. Unlike standard products, however, the W58100 does not include built-in memory, because the chip is designed to serve only as a demonstration chip for the W581xx series ICs. Hence the W58100 must be operated with an external memory device (e.g., a flash EPROM memory IC). The W58100's LOAD and JUMP commands and 8 programmable registers provide powerful user-programmable functions that make this chip suitable for a wide range of speech IC applications.
