Product Details

Description

Features:

`Provides CLK, ADDR, and DATA connection interface pins to communicate with other controllers such as
Winbond PowerSpeechTM , BandDirector^TM, ViewTalk^TM, ... Series.
` 128K/512K/1M/2M bits memory density available.
` Directly cascadable for longer duration applications ( except for W55F01).
`Fast frame-write operation
`Frame (32 bits) program cycle time: 400 S (typ.)
`Fast whole-chip-erase duration: 50 mS (max.)
` Read data access time: 500 nS (max.)
`Program/erase cycles: 10,000 (typ.)
`Data retention: 10 years (typ.)
` Low power consumption:
`Operating: 5 mA (typ.)
`Standby: 2 A (typ.)

Pinout

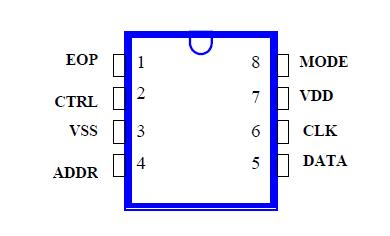

Connection Diagram

Specifications

Parameter	Symbol	Condition	Rated Value	Unit
Operating Temp.	TOPR	-	0 to +70	°C
Storage Temp.	TSTG	-	-65 to +150	°C
Power Supply	VDD−VSS	-	-0.3 to +7.0	V
Input DC Voltage	VDC	All pins	-0.5 to VDD +1.0	V
Transient Voltage (< 20 nS)	VTRAN	All pins	-1.0 to VDD +1.0	V

Note: Exposure to conditions beyond those listed under Absolute Maximum Ratings may adversely affect the life and reliability of the device.
