Product Details

Description

Features:

Wide range of operating voltage: 2.4V ~ 5.5V
Operating frequency up to 1 MHz (@VDD = 2.4V)
Versatile operation modes
   Serial read mode
   Serial check-sum output mode
   Fast self-test mode
Directly cascade for longer duration applications
Serial shift-in address bus
Serial data mode, the connection interface can be reduced to three pins:
   CLK, ADDR, DATA
Read access time: 500 ns
Low power consumption
   Operation current: 5 mA (typ.)
   Standby current: 2 uA (typ.)

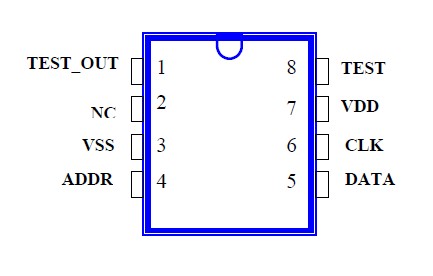

Pinout

Connection Diagram

Specifications

PARAMETER	SYMBOL	CONDITIONS	RATED	UNIT
Operation Temperature	T_OPR	-	0 to +70	°C
Storage Temperature	T_STG	-	-65 to +150	°C
Power Supply (VDD-VSS)	V_DD-V_SS	-	-0.3 to +7.0	V
Input D.C. Voltage	V_DC	All pins	-0.5 to V_cc+1.0	V
Transient Voltage (<20ns)	V_TRAN	All pins	-1.0 to V_cc+1.0	V

Description

The W551Cxxx series is designated to interface with Winbond PowerSpeech™ , BandDirector™ , and ViewTalk™ family ICs directly. Application with PowerSpeech™ , BandDirector™ , and ViewTalk™ the serial voice memory W551Cxxx can lengthen the playback duration to meet the increasing market demand on complicated scenarios. The W551Cxxx was already utilized the same serial interface as Winbond serial flash memory W55Fxx for designer to simulate & verify the memory contents in advance. Besides that, W551Cxxx also provides a "Self-test mode" to verify the voice memory contents easily and quickly.
