W541C260

Features: • Operating voltage: 2.4V−5.5V (LCD drive voltage: 3.0V, or 4.5V)• Single or Dual Clock Mode- Single (main oscillator only) or dual clock (both main and sub-oscilator) by mask option .−Sub-oscillator is only 32.768 KHz crystal for dual clock mode.− Main osci...

product image

W541C260 Picture
See larger image
SeekIC No. : 004544825 Detail

W541C260: Features: • Operating voltage: 2.4V−5.5V (LCD drive voltage: 3.0V, or 4.5V)• Single or Dual Clock Mode- Single (main oscillator only) or dual clock (both main and sub-oscilator) by...

W541C260 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W541C260
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Operating voltage: 2.4V−5.5V (LCD drive voltage: 3.0V, or 4.5V)
• Single or Dual Clock Mode
- Single (main oscillator only) or dual clock (both main and sub-oscilator) by mask option .
−Sub-oscillator is only 32.768 KHz crystal for dual clock mode.
− Main oscillator is crystal or RC oscillation by mask code option .
− Main clock : High-frequency clock (400 KHz to 4 MHz) or low-frequency clock (32.768 KHz) is
selected by mask code option
• Memory
−2048 * 16 bit program ROM (including 2K * 4 bit look-up table)
−128 * 4 bit data RAM (including 16 working registers)
−32 * 4 LCD data RAM
• 21 input/output pins
−Ports for input only: 2 ports/8 pins
−Input/output ports: 2 ports/8 pins
−Port for output only: 1 port /4 pins (high sink current to drive LEDs)
−MFP output pin: 1 pin (MFP)
• Power-down mode
− Hold function: no operation (except for oscillator)
−Stop function: no operation (including main clock)
• Five types of interrupts
−Four internal interrupts (Divider 0, Divider 1, Timer 0, Timer 1)
−One external interrupt (Port RC)
• LCD driver output
- 32 segment * 4 common
- Static, 1/2 duty (1/2 bias), 1/3 duty (1/2 or 1/3 bias), 1/4 duty (1/3 bias) driving mode can be selected
- LCD driver output pins can be used as DC output ports; selectable by code option
• MFP output pin
−Output is software selectable as modulating or nonmodulating frequency
−Works as frequency output specified by Timer 1
• Two built-in 14-bit clock frequency divider circuit (divider 0 and divider 1)
• Two built-in 8-bit programmable countdown timers
−Timer 0: one of two internal clock frequencies (FOSC/4 or FOSC/1024) can be selected
−Timer 1: includes an auto-reload function; and one of two internal clock frequencies (FOSC or FOSC/64) can be selected or falling edge of pin RC.0 can be selected (output through MFP pin)
• Built-in 18/14-bit watchdog timer selectable for system reset
• Powerful instruction set: 115 instructions
• 8-level subroutine (include interrupt) nesting
• Up to 1 S instruction cycle (with 4 MHz operating frequency)
• Packaged in 80-pin QFP

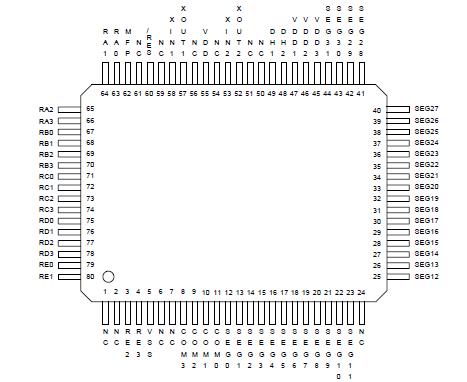

Pinout

Connection Diagram


Specifications

Parameter
Rating
Unit
Supply Voltage to Ground Potential
-0.3 to +7.0
V
Applied Input/Output Voltage
-0.3 to +7.0
V
Power Dissipation
120
mW
Ambient Operating Temperature
0 to +70
°C
Storage Temperature
-55 to +150
°C
Note: Exposure to conditions beyond those listed under Absolute Maximum Ratings may adversely affect the life and reliability of the device.


Description

The W541C260 is cost down version of W741C260 and all function are same as W741C260. It is a high-performance 4-bit microcontroller (C) with an LCD driver. The device contains a 4-bit ALU, two 8-bit timers, two dividers, a 32 * 4 LCD driver, and five 4-bit I/O ports (including 1 output port to drive the LEDs). There are also five interrupt sources and 8-level subroutine nesting for interrupt applications. The W541C260 has one power reduction mode to help minimize power dissipation.

The W541C260 has two oscillator circuits and can work in dual-clock or single-clock operation mode. It is suitable for remote controllers, watches and clocks, speech synthesis LSI controllers, and other products.
