W523X

Features: • Wide operating voltage range: 1.2 to 3.6 volts• Programmable speech synthesizer• 4-bit ADPCM synthesis method and 8-bit D/A converter• RC oscillator with built-in capacitor; voice output frequency typically at 6 KHz• Provides 4 trigger inputs• Drives...

product image

W523X Picture
See larger image
SeekIC No. : 004544787 Detail

W523X: Features: • Wide operating voltage range: 1.2 to 3.6 volts• Programmable speech synthesizer• 4-bit ADPCM synthesis method and 8-bit D/A converter• RC oscillator with built-in...

W523X Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W523X
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Wide operating voltage range: 1.2 to 3.6 volts
• Programmable speech synthesizer
• 4-bit ADPCM synthesis method and 8-bit D/A converter
• RC oscillator with built-in capacitor; voice output frequency typically at 6 KHz
• Provides 4 trigger inputs
• Drives 2 flash LEDs for two batteries
• 3 STOP output signals
• Flexible functions programmable through the following:
   − LD (load), JP (jump) commands
   − Four registers: R0, EN, STOP, and MODE
   − Conditional instructions
   − Speech equation
   − Global repeat (GR) setting
• Programmable power-on initialization (POI), which can be interrupted by trigger inputs
• Interrupt or non-interrupt for rising or falling edge of each trigger pin (this feature determines
   retriggerable, non-retriggerable, overwrite, and non-overwrite features of each trigger pin)
• LED On/Off control can be set independently in each GO instruction of speech equation
• Independent control of LED1 and LED2
• Total of 256 voice group entries available for programming
   (including eight hardware and 248 software group entry points)
• 20 to 40 mS debounce time


Pinout

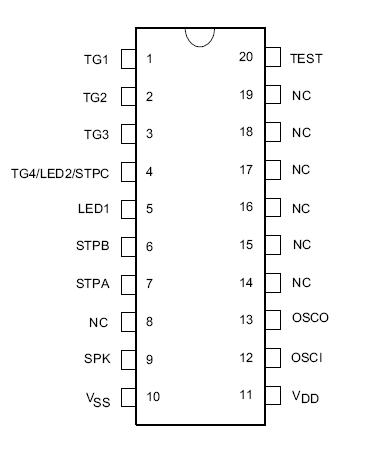

Connection Diagram


Specifications

PARAMETER SYMBOL CONDITION RATED VALUE UNIT
Operating Temp. TOPR - 0 to +70 °C
Storage Temp. TSTG - -55 to +150 °C
Power Supply VDD-VSS - -0.3 to +7.0 V
Input Voltage VIN All pins VSS -0.3 to VDD +0.3 V



Description

The W523X is a programmable speech synthesis IC that utilizes the ADPCM coding method to generate all types of voice effects. The W523X's LOAD and JUMP commands and four programmable registers provide powerful user-programmable functions that make this chip suitable for an extremely wide range of speech IC applications.

The W523X family includes the W5231, W5232, W5233, and W5234. The ROM size of each of these products is shown below:
