Product Details

Description



Features:

· Modified ADM algorithm with 24 KHz sampling frequency when ROSC = 620 KW
· Operates with Winbond serial flash EPROM
· Built-in A/D, D/A, MIC preamplifier, AGC circuit, anti-alias/smoothing filter, speaker power amplifier, and LED indicator
· 8 input trigger pins (L_REC, E_PLAY, L_PLAY, FWD, BWD, STOP, ERASE, RESET)
    debounced to ensure noise-free operations
· Single/multi-voice segment operation, normal/CPU mode selected by pin option (SMODE, CPU)
· Cascadable for longer duration by directly cascading serial flash EPROMs (maximum 16 Mbits)
· Maximum 63 voice segments available in multi-segment operation
· Provides selective record, erase, and playback functions
· Provides low power detection circuit at 3.0V
· Provides both speaker direct drive and speaker current output (5 mA)
· Low power consumption:
   - Operating: 15 mA (typ.)
   - Standby: 0.01 mA (typ.)


Pinout

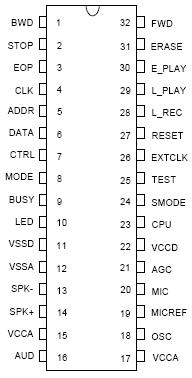

Connection Diagram


Specifications

PARAMETER SYMBOL CONDITION RATED VALUE UNIT
Operating Temp. TOPR - 0 to +70 °C
Storage Temp. TSTG - -55 to +150 °C
Power Supply VCC-VSS - -0.3 to +7.0 V
Input DC Voltage VIN All pins VSS -0.3 to VCC +0.3 V



Description

The W51300 is a voice recorder IC which contains A/D and D/A converters to digitize and reproduce voice signals. An anti-alias/smoothing filter, AGC circuit, MIC preamplifier, and speaker power amplifier are used to smooth the input voice and set the output voice to a certain volume while minimizing the number of extra components needed. The recording time depends on the size of the external memory.

The external memory is a nonvolatile flash EPROM that stores the voice data while power is switched off. This external memory provides a great advantage in cartridge or greeting card applications. A maximum of 16 Mbit of memory can be cascaded. In addition, the W51300's flexible segmentation, selective recording/erasing, forward and backward move functions, and MCU interface provide flexibility to meet the needs of a wide variety of applications.
