W49S201

Features: · Single 5-volt operations: - 5-volt Read - 5-volt Erase - 5-volt Program· Fast Program operation: - Word-by-Word programming: 50 mS (max.)· Fast Erase operation: 100 mS (typ.)· Fast Synchronous Burst Read access time: 15/17 nS (typ.)· High performance synchronous burst read mode up to 5...

product image

W49S201 Picture
See larger image
SeekIC No. : 004544770 Detail

W49S201: Features: · Single 5-volt operations: - 5-volt Read - 5-volt Erase - 5-volt Program· Fast Program operation: - Word-by-Word programming: 50 mS (max.)· Fast Erase operation: 100 mS (typ.)· Fast Synch...

W49S201 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W49S201
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Single 5-volt operations:
   - 5-volt Read
   - 5-volt Erase
   - 5-volt Program
· Fast Program operation:
   - Word-by-Word programming: 50 mS (max.)
· Fast Erase operation: 100 mS (typ.)
· Fast Synchronous Burst Read access time: 15/17 nS (typ.)
· High performance synchronous burst read mode up to 50 MHz Clock Frequency
· Support Linear Burst Mode Read with Wrap- Around Feature.
· No Burst Length Limitation.
· Fast Asynchronous Random Read access time: 55/70 nS
· Endurance: 10K/100K cycles (Typical.)
· Twenty-year data retention
· Hardware data protection
· Sector configuration
   - One 8K words boot block with lockout protection
   - Two 8K words parameter blocks
   - One 104K words (208K bytes) Main Memory Array Blocks
· Low power consumption
   - Active current: 35 mA (typ.)
   - Standby current: 20 mA (typ.)
· Automatic program and erase timing with internal VPP generation
· End of program or erase detection
   - Toggle bit
   - Data polling
· Latched address and data
· TTL compatible I/O
· JEDEC standard word-wide pinouts
· Packaged in 48-pin TSOP


Pinout

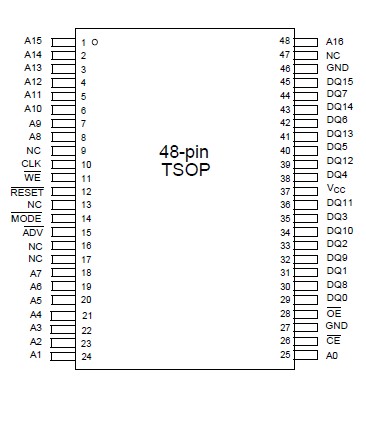

Connection Diagram


Specifications

PARAMETER

RATING

UNIT

Power Supply Voltage to Vss Potential

-0.5 to +7.0

V

Operating Temperature

0 to +70

°C

Storage Temperature

-65 to +150

°C

D.C. Voltage on Any Pin to Ground Potential except A9

-0.5 to VDD +1.0

V

Transient Voltage (<20 nS ) on Any Pin to Ground Potential

-1.0 to VDD +1.0

V

Voltage on OE Pin to Ground Potential

-0.5 to 12.5

V




Description

The W49S201 is a 2-megabit, 5-volt only CMOS flash memory organized as 128K ´ 16 bits. The W49S201 supports both asynchronous & high performance synchronous burst read modes. The device can be programmed and erased in-system with a standard 5V power supply. A 12-volt VPP is not required. The unique cell architecture of the W49S201 results in fast program/erase operations with extremely low current consumption (compared to other comparable 5-volt flash memory products). The device can also be programmed and erased using standard EPROM programmers.
