W40S11-03

Features: • Fourteen skew-controlled CMOS outputs (SDRAM0:13)• Supports three SDRAM DIMMs• Ideal for high-performance systems designed around Intel®'s latest chip set• I2C™ serial configuration interface• Clock Skew between any two outputs is less than 250 p...

product image

W40S11-03 Picture
See larger image
SeekIC No. : 004544730 Detail

W40S11-03: Features: • Fourteen skew-controlled CMOS outputs (SDRAM0:13)• Supports three SDRAM DIMMs• Ideal for high-performance systems designed around Intel®'s latest chip set• I2...

W40S11-03 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W40S11-03
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fourteen skew-controlled CMOS outputs (SDRAM0:13)
• Supports three SDRAM DIMMs
• Ideal for high-performance systems designed around Intel®'s latest chip set
• I2C™ serial configuration interface
• Clock Skew between any two outputs is less than 250 ps
• 1 to 5 ns propagation delay
• DC to 133-MHz operation
• Single 3.3V supply voltage
• Low power CMOS design packaged in a 28-pin, 300-mil SOIC (Small Outline Integrated Circuit)


Pinout

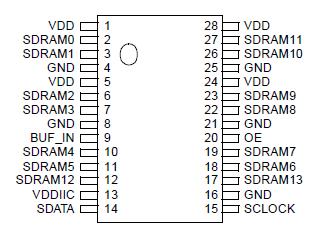

Connection Diagram


Specifications

Parameter Description Rating Unit
VDD, VIN Voltage on any pin with respect to GND 0.5 to +7.0 V
TSTG Storage Temperature 65 to +150
TA Operating Temperature 0 to +70
TB Ambient Temperature under Bias 55 to +125
