Ethernet ICs HARDWIRED TCP/IP CHIP

product image

W3100A Picture
See larger image
SeekIC No. : 00321202 Detail

W3100A: Ethernet ICs HARDWIRED TCP/IP CHIP

W3100A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W3100A
Mfg:
WIZnet
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description

Product :
Number of Transceivers :
Standard Supported :
Data Rate :
Supply Voltage - Max :
Supply Voltage - Min :
Supply Current (Max) :
Maximum Operating Temperature :
Package / Case :
Packaging :


Features:

Hardware Internet protocols included: TCP, IP Ver.4, UDP, ICMP, ARP
Hardware Ethernet protocols included: DLC, MAC
Supports 4 independent connections simultaneously
Internal ICMP responds to PING commands
Protocol processing speed: full-duplex 4~5 Mbps
Intel/Motorola MCU bus Interface
I2C Interface
Standard MII Interface for under-layer physical chip
Socket API support for easy application programming
Supports full-duplex mode
Internal 16Kbytes Dual-port SRAM for data buffer
0.35 m CMOS technology
Wide operating voltage: 3.3V internal operation, 5V tolerant 3.3V IOs
Small 64 Pin LQFP Package


Pinout

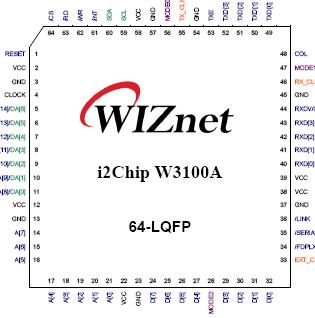

Connection Diagram


Specifications

Symbol Parameter Value Unit
VDD DC Supply Voltage -0.3 to 3.8 V
VIN DC Input Voltage -0.3 to 5.5(5V-tolerant) V
IIN DC Input Diode Current ±10 mA
Tstg Storage Temperature -40 to 125 °C



Description

The i2Chip W3100A is an LSI of hardware protocol stack that provides an easy, low-cost solution for high-speed Internet connectivity for digital devices by allowing simple installation of TCP/IP stack in the hardware.

The W3100A offers system designers a quick, easy way to add Ethernet networking functionality to any product. Implementing this LSI into a system can completely offload Internet connectivity and processing standard protocols from the system, thereby significantly reducing the software development cost.

The W3100A contains TCP/IP Protocol Stacks such as TCP, UDP, IP, ARP and ICMP protocols, as well as Ethernet protocols such as Data Link Control and MAC protocol.

The W3100A offers a socket API (Application Programming Interface) that is similar to the windows socket API. The chip offers Intel and Motorola MCU (8051, i386, 6811 tested) bus interface and I2C for upper-layer and supports standard MII interface for under-layer Ethernet.

The W3100A can be applied to handheld devices including Internet phones, VoIP SOC chips, Internet MP3 players, handheld medical devices, LAN cards for Web servers, cellular phones and many other nonportable electronic devices such as large consumer electronic products
