W305B

Features: • Single chip FTG solution for Intel Solano/810E/810• Programmable clock output frequency with less than 1 MHz increment• Integrated fail-safe Watchdog timer for system recovery• Automatically switch to HW selected or SW programmed clock frequency when Watchdog ti...

product image

W305B Picture
See larger image
SeekIC No. : 004544591 Detail

W305B: Features: • Single chip FTG solution for Intel Solano/810E/810• Programmable clock output frequency with less than 1 MHz increment• Integrated fail-safe Watchdog timer for system r...

W305B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W305B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single chip FTG solution for Intel Solano/810E/810
• Programmable clock output frequency with less than 1 MHz increment
• Integrated fail-safe Watchdog timer for system recovery
• Automatically switch to HW selected or SW programmed clock frequency when Watchdog timer time-out
• Capable of generating system RESET after a Watchdog timer time-out occurs or a change in output frequency via SMBus interface
• Support SMBus byte read/write and block read/write operations to simplify system BIOS development
• Vendor ID and Revision ID support
• Programmable drive strength for SDRAM and PCI output clocks
• Programmable output skew between CPU, AGP, PCI and SDRAM
• Maximized EMI suppression using Cypress's Spread Spectrum Technology
• Low jitter and tightly controlled clock skew
• Two copies of CPU clock
• Thirteen copies of SDRAM clock
• Eight copies of PCI clock
• One copy of synchronous APIC clock
• Three copies of 66-MHz outputs
• Three copies of 48-MHz outputs
• One copy of double strength 14.31818-MHz reference clock
• One RESET output for system recovery
• SMBus interface for turning off unused clocks


Pinout

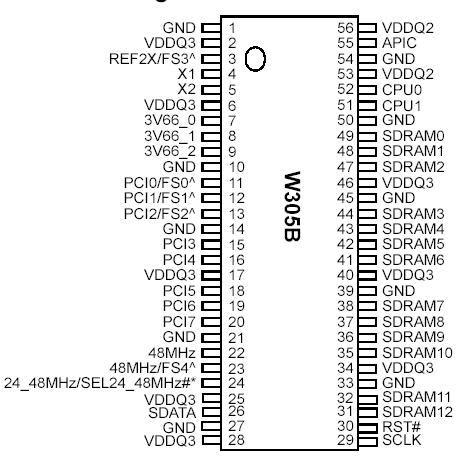

Connection Diagram


Specifications

Parameter Description Min. Max. Unit
VDDQ3 3.3V Core Supply Voltage 0.5 4.6 V
VDDQ2 2.5V I/O Supply Voltage 0.5 3.6 V
TS Storage Temperature 65 150 °C
Vi/o3 3.3V Core Supply Voltage 0.5 4.6 V
Vi/o3 2.5V I/O Supply Voltage 0.5 3.6 V
ESD prot. Input ESD Protection 2000   V
