W25S243A

Features: · Synchronous operation· High-speed access time: 12 nS· Single +3.3V power supply· Individual byte write capability· 3.3V LVTTL compatible I/O· Clock-controlled and registered input· Asynchronous output enable· Pipelined/non-pipelined data output capability· Supports snooze mode (low-pow...

product image

W25S243A Picture
See larger image
SeekIC No. : 004544527 Detail

W25S243A: Features: · Synchronous operation· High-speed access time: 12 nS· Single +3.3V power supply· Individual byte write capability· 3.3V LVTTL compatible I/O· Clock-controlled and registered input· Async...

W25S243A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W25S243A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Synchronous operation
· High-speed access time: 12 nS
· Single +3.3V power supply
· Individual byte write capability
· 3.3V LVTTL compatible I/O
· Clock-controlled and registered input
· Asynchronous output enable
· Pipelined/non-pipelined data output capability
· Supports snooze mode (low-power state)
· Internal burst counter supports Intel burst (Interleaved) mode & linear burst mode
· Supports 2T/1T mode
· Packaged in 128-pin QFP and TQFP


Pinout

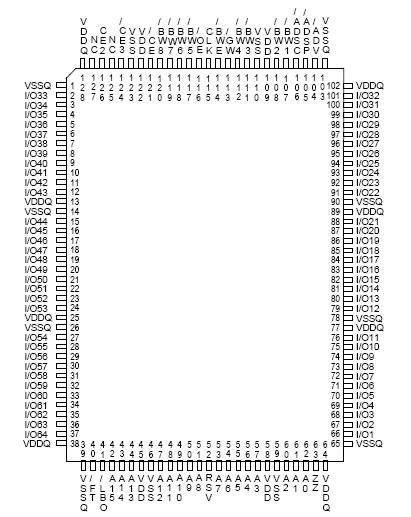

Connection Diagram


Specifications

PARAMETER RATING UNIT
Core Supply Voltage to Vss -0.5 to +4.6 V
I/O Supply Voltage to Vss -0.5 to +4.6 V
Input/Output to VSS Potential VSSQ -0.5 to VDDQ +0.5 V
Allowable Power Dissipation 1.0 W
Storage Temperature -65 to +150 °C
Operating Temperature 0 to +70 °C



Description

The W25S243A is a high-speed, low-power, synchronous-burst pipelined, CMOS static RAM organized as 65,536 ´ 64 bits that operates on a single 3.3-volt power supply. A built-in two-bit burst address counter supports both Pentiumä burst mode and linear burst mode. The mode to be executed is controlled by the LBO pin. Pipelining or non-pipelining of the data outputs is controlled by the FT pin. A snooze mode can reduces power dissipation. This device supports 3-1-1-1-2-1-1-1 in a two-bank, back-to-back burst read cycle.
