W2465

Features: · Low power consumption: - Active: 250 mW (max.) - Standby: 100 mW (max.)(LL-version) 250 mW (max.)(L-version)· Access time: 70/100 nS (max.)· Single +5V power supply· Fully static operation· All inputs and outputs directly TTL compatible· Three-state outputs· Battery back-up operation c...

product image

W2465 Picture
See larger image
SeekIC No. : 004544506 Detail

W2465: Features: · Low power consumption: - Active: 250 mW (max.) - Standby: 100 mW (max.)(LL-version) 250 mW (max.)(L-version)· Access time: 70/100 nS (max.)· Single +5V power supply· Fully static operati...

W2465 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W2465
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Low power consumption:
   - Active: 250 mW (max.)
   - Standby: 100 mW (max.)(LL-version) 250 mW (max.)(L-version)
· Access time: 70/100 nS (max.)
· Single +5V power supply
· Fully static operation
· All inputs and outputs directly TTL compatible
· Three-state outputs
· Battery back-up operation capability
· Data retention voltage: 2V (min.)
· Available packages: 28-pin 600 mil DIP, 330 mil SOP and 300 mil skinny DIP

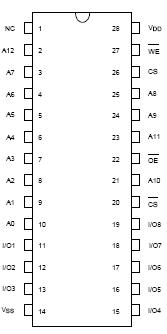

Pinout

Connection Diagram


Specifications

PARAMETER RATING UNIT
Supply Voltage to VSS Potential -0.5 to +7.0 V
Input/Output to VSS Potential -0.5 to VDD +0.5 V
Allowable Power Dissipation 1.0 W
Storage Temperature -65 to +150 °C
Operating Temperature 0 to 70 °C



Description

The W2465 is a slow-speed, low-power CMOS static RAM organized as 8192 ´ 8 bits that operates on a single 5-volt power supply. This device is manufactured using Winbond's high performance CMOS technology.
