W24010

Features: · Low power consumption: - Active: 350 mW (max.) -Standby: 15 mW (max.) /3V 50 mW (max.) /5V· Access time: 70 nS (max.) /5V 100 nS (max.) /3V· Single 3V/5V power supply· Fully static operation· All inputs and outputs directly TTL compatible· Three-state outputs· Battery back-up operation...

product image

W24010 Picture
See larger image
SeekIC No. : 004544487 Detail

W24010: Features: · Low power consumption: - Active: 350 mW (max.) -Standby: 15 mW (max.) /3V 50 mW (max.) /5V· Access time: 70 nS (max.) /5V 100 nS (max.) /3V· Single 3V/5V power supply· Fully static opera...

W24010 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W24010
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Low power consumption:
   - Active: 350 mW (max.)
   - Standby: 15 mW (max.) /3V 50 mW (max.) /5V
· Access time: 70 nS (max.) /5V 100 nS (max.) /3V
· Single 3V/5V power supply
· Fully static operation
· All inputs and outputs directly TTL compatible
· Three-state outputs
· Battery back-up operation capability
· Data retention voltage: 2V (min.)
· Packaged in 32-pin 600 mil DIP, 450 mil SOP,
   standard type one TSOP (8 mm ´ 20 mm) and
   small type one TSOP (8 mm ´ 13.4 mm)


Pinout

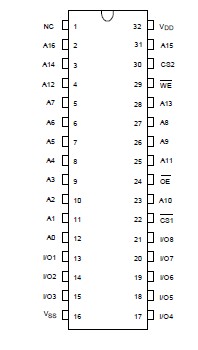

Connection Diagram


Specifications

PARAMETER

RATING

UNIT

Supply Voltage to VSS Potential

 -0.5 to +7.0

V

Input/Output to VSS Potential

 -0.5 to VDD +0.5

V

Allowable Power Dissipation

1.0

W

Storage Temperature

-65 to +150

°C

Operating Temperature

 LE

-20 to 85

°C

 LI

 -40 to 85

 °C




Description

The W24010 is a normal-speed, very low-power CMOS static RAM organized as 131072 ´ 8 bits that operates on a wide voltage range from 2.7V to 5.5V power supply. The W24010 family, W24010- 70LE and W24010-70LI, can meet the requirement of various operating temperature. This device is manufactured using Winbond's high performance CMOS technology.
