W238

Features: • Maximized EMI suppression using Cypress's Spread Spectrum technology• Low jitter and tightly controlled clock skew• Highly integrated device providing clocks required for CPU, core logic, and SDRAM• Two copies of CPU clock at 66/100/133 MHz• Thirteen copie...

product image

W238 Picture
See larger image
SeekIC No. : 004544486 Detail

W238: Features: • Maximized EMI suppression using Cypress's Spread Spectrum technology• Low jitter and tightly controlled clock skew• Highly integrated device providing clocks required f...

W238 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W238
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Maximized EMI suppression using Cypress's Spread Spectrum technology
• Low jitter and tightly controlled clock skew
• Highly integrated device providing clocks required for CPU, core logic, and SDRAM
• Two copies of CPU clock at 66/100/133 MHz
• Thirteen copies of SDRAM clocks at 100/133 MHz
• Five copies of PCI clock compliant to PCI spec 2-1 and capable of driving a maximum load of 40 pF
• One copy of synchronous APIC clock
• Two copies of 48-MHz clock (non-spread spectrum) optimized for USB reference input and video dot clock
• Three copies of 66-MHz fixed clock
• One copy of 14.31818-MHz reference clock
• Power down control
• I2C™ interface for turning off unused clocks


Pinout

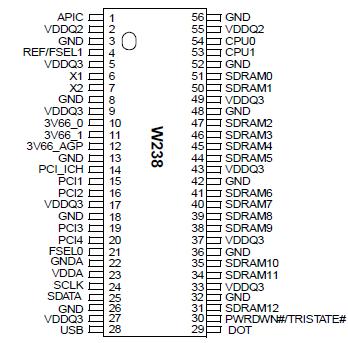

Connection Diagram


Specifications

Parameter Description Min. Max. Unit
VDD3 3.3V Core Supply Voltage 0.5 4.6 V
VDDQ2 2.5V I/O Supply Voltage 0.5 3.6 V
VDD3 3.3V Supply Voltage 0.5 4.6 V
TS Storage Temperature 65 150
Parameter Description Min. Max. Unit
Vih3 3.3V Input High Voltage 0.5 4.6 V
Vil3 3.3V Input Low Voltage 0.5 V
ESD prot. Input ESD Protection 2000 V
