W237

Features: • Maximized EMI suppression using Cypress's Spread Spectrum technology• Single-chip system frequency synthesizer for Mobile Intel® 440BX• Two copies of CPU output• I2C™ interface for programming• Seven copies of PCI output• Two 48/24MHz outpu...

product image

W237 Picture
See larger image
SeekIC No. : 004544485 Detail

W237: Features: • Maximized EMI suppression using Cypress's Spread Spectrum technology• Single-chip system frequency synthesizer for Mobile Intel® 440BX• Two copies of CPU outputR...

W237 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W237
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Maximized EMI suppression using Cypress's Spread Spectrum technology
• Single-chip system frequency synthesizer for Mobile Intel® 440BX
• Two copies of CPU output
• I2C™ interface for programming
• Seven copies of PCI output
• Two 48/24MHz outputs for USB and SIO
• Three buffered reference outputs
• Eight buffered SDRAM outputs provide support for 2 DIMMs
• Spread Spectrum feature enabled through I2C interface and pin option
• Power management control inputs


Pinout

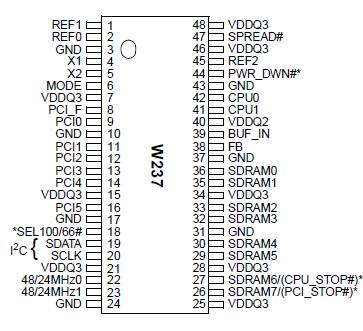

Connection Diagram


Specifications

Parameter Description Rating Unit
VDD, VIN Voltage on any pin with respect to GND 0.5 to +7.0 V
TSTG Storage Temperature 65 to +150
TB Ambient Temperature under Bias 55 to +125
TA Operating Temperature 0 to +70
ESDPROT Input ESD Protection 2 (min.) KV
