W215B

Features: • Generates system clocks for CPU, IOAPIC, SDRAM, PCI, USB plus 14.318 MHz (REF0:1)• MODE input pin selects optional power management input control pins (reconfigures pins 26 and 27)• Two fixed outputs separately selectable as 24-MHz or 48-MHz (default = 48-MHz)• ...

product image

W215B Picture
See larger image
SeekIC No. : 004544474 Detail

W215B: Features: • Generates system clocks for CPU, IOAPIC, SDRAM, PCI, USB plus 14.318 MHz (REF0:1)• MODE input pin selects optional power management input control pins (reconfigures pins 26 a...

W215B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W215B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Generates system clocks for CPU, IOAPIC, SDRAM, PCI, USB plus 14.318 MHz (REF0:1)
• MODE input pin selects optional power management input control pins (reconfigures pins 26 and 27)
• Two fixed outputs separately selectable as 24-MHz or 48-MHz (default = 48-MHz)
• VDDQ3 = 3.3V±5%, VDDQ2 = 3.3V±5%
• Uses external 14.318-MHz crystal
• Available in 48-pin TSSOP (6.1-mm)
• 10 CPU output impedance


Pinout

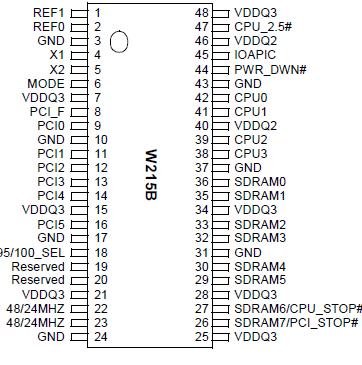

Connection Diagram


Specifications

Parameter Description Rating Unit
VDD, VIN Voltage on any pin with respect to GND 0.5 to +7.0 V
TSTG Storage Temperature 65 to +150
TB Ambient Temperature under Bias 55 to +125
TA Operating Temperature 0 to +70
ESDPROT Input ESD Protection 2 (min) kV
