W156C

Features: • Maximized EMI suppression using Cypress's Spread Spectrum technology• Single-chip implementation• Four copies of CPU output• Six copies of PCI output• One 48-MHz output for USB• One 24-MHz output for SIO• Two buffered reference outputs• T...

product image

W156C Picture
See larger image
SeekIC No. : 004544422 Detail

W156C: Features: • Maximized EMI suppression using Cypress's Spread Spectrum technology• Single-chip implementation• Four copies of CPU output• Six copies of PCI output• One 4...

W156C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W156C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Maximized EMI suppression using Cypress's Spread Spectrum technology
• Single-chip implementation
• Four copies of CPU output
• Six copies of PCI output
• One 48-MHz output for USB
• One 24-MHz output for SIO
• Two buffered reference outputs
• Thirteen SDRAM outputs provide support for 3 DIMMs
• Supports frequencies up to 124 MHz
• I2C™ interface for programming
• Power management control inputs

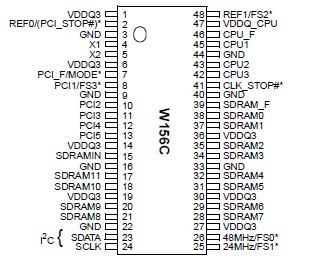

Pinout

Connection Diagram


Specifications

Parameter Description Rating Unit
VDD, VIN Voltage on any pin with respect to GND 0.5 to +7.0 V
TSTG Storage Temperature 65 to +150
TB Ambient Temperature under Bias 55 to +125
TA Operating Temperature 0 to +70
ESDPROT Input ESD Protection 2 (min) kV
