Product Details

Description



Features:

• Maximized EMI suppression using Cypress's Spread Spectrum Technology
• Low jitter and tightly controlled clock skew
• Highly integrated device providing clocks required for CPU, core logic, and SDRAM
• Three copies of CPU clock at 66/100 MHz
• Nine copies of 100-MHz SDRAM clocks
• Eight copies of PCI clock
• Two copies of synchronous APIC clock
• Two copies of 48-MHz clock (non-spread spectrum) optimized for USB reference input and video dot clock
• Two copies of 66-MHz fixed clock
• One copy of 14.31818-MHz reference clock
• Power-down control
• I2C interface for turning off unused clocks


Pinout

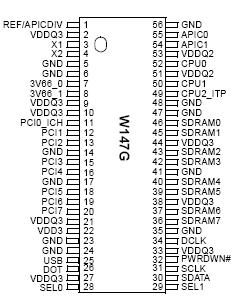

Connection Diagram


Specifications

Parameter Description Min Max Unit
VDD3 3.3V Core Supply Voltage -0.5 4.6 V
VDDQ2 2.5V I/O Supply Voltage -0.5 3.6 V
VDDQ3 3.3V Supply Voltage -0.5 4.6 V
TS Storage Temperature -65 150 °C
Vih3 3.3V Input High Voltage -0.5 4.6 V
Vil3 3.3V Input Low Voltage -0.5   V
ESD prot. Input ESD Protection 2000   V
