VT1621

Features: TV output supporting inputs up to 800x600 graphics resolutions Supports digital RGB (15/16 or 24-bit) or YCrCb (CCIR601 or CCIR656) 16 bit 4:2:2 input video data in both interlaced or non-interlaced formats Supports NTSC(M and J) or PAL (B, D, G, H, I, M, N and Nc) TV output standards Su...

product image

VT1621 Picture
See larger image
SeekIC No. : 004543781 Detail

VT1621: Features: TV output supporting inputs up to 800x600 graphics resolutions Supports digital RGB (15/16 or 24-bit) or YCrCb (CCIR601 or CCIR656) 16 bit 4:2:2 input video data in both interlaced or non-...

VT1621 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VT1621
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 TV output supporting inputs up to 800x600 graphics resolutions
Supports digital RGB (15/16 or 24-bit) or YCrCb (CCIR601 or CCIR656) 16 bit 4:2:2 input video data in both interlaced or non-interlaced formats
Supports NTSC(M and J) or PAL (B, D, G, H, I, M, N and Nc) TV output standards
Supports Macrovision 7.1 anti-copy protection (VT1621M only)
Underflow check and coring function for reducing the input noise
Composite, S-Video and SCART output support
Flicker filtering to enhance to TV image quality
Dot crawl control circuit to still this phenomenon
Master or slave video timing operation
New Algorithm for text sharpness
High Quality 3 x 9-bit Video DAC
Serial bus programming interface
Programmable power management
Automatic detection of TV presence
Buffered crystal clock output pin
ProScale™ engine support for underscan and overscan mode
44-pin TQFP package

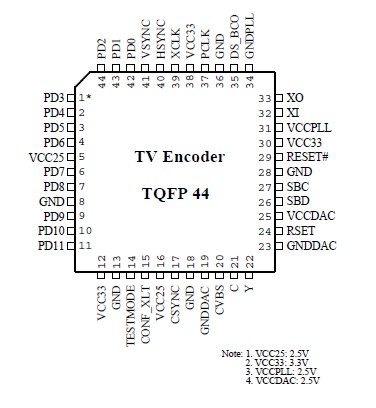

Pinout

Connection Diagram


Specifications

Symbol Description Min Typ Max Unit
TSTG Storage Temperature 55   125
TC Case Operating Temperature 0   55
VI Input Voltage (all digital pins) GND 0.5   VCC+0.5 V
VESD Electrostatic Discharge (Human Body)     2 kV
TVPS Vapor Phase Soldering (1 min.)     220
