VSP2270

Features: CCD Signal Processing: Correlated Double Sampling (CDS) Programmable Black Level Clamping Programmable Gain Amplifier (PGA) 6-dB to 42-dB Gain Ranging 10-Bit Digital Data Output: Up to 28-MHz Conversion Rate No Missing Codes 77-dB Signal-To-Noise Ratio Portable Operation: Low Voltag...

product image

VSP2270 Picture
SeekIC No. : 004543723 Detail

VSP2270: Features: CCD Signal Processing: Correlated Double Sampling (CDS) Programmable Black Level Clamping Programmable Gain Amplifier (PGA) 6-dB to 42-dB Gain Ranging 10-Bit Digital Data Output: Up to ...

floor Price/Ceiling Price

Part Number:
VSP2270
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/7

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

CCD Signal Processing:
   Correlated Double Sampling (CDS)
    Programmable Black Level Clamping
Programmable Gain Amplifier (PGA)
   6-dB to 42-dB Gain Ranging
10-Bit Digital Data Output:
   Up to 28-MHz Conversion Rate
   No Missing Codes
77-dB Signal-To-Noise Ratio
Portable Operation:
   Low Voltage: 2.7 V to 3.6 V
   Low Power: 93 mW (Typ) at 3 V
   Stand-By Mode: 6 mW



Application

DSC, DVC, Security Camera

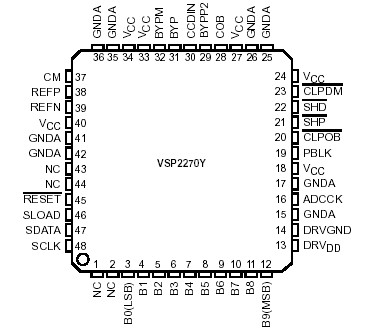

Pinout

  Connection Diagram


Specifications

Supply voltage: VCC, DRVDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 V
Supply voltage differences: VCC . . . . . . . . . . . . . . . . . . . . . . . .. . .  . ±0.1 V
Ground voltage differences: GNDA, DRVDD . . . . . . . . . . . . . . . . . . . .±0.1 V
Digital input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to 5.3 V
Analog input voltage . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to VCC + 0.3 V
Input current (any leads except supplies) . . . . . . . . . . . . . . . . . . . .±10 mA
Operating temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25°C to 85°C
Storage temperature . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .55°C to 125°C
Junction temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . . . . .150°C
Lead temperature (soldering, 5 sec) . . . . . . . . . . . . . . . . . .. . . . . . . .260°C
Package temperature (IR reflow, peak, 10 sec) . . . . . . . . . . . . . . . . .235°C

† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.




Description

The VSP2270 device is a complete mixed-signal processing IC for digital cameras providing signal conditioning and analog-to-digital conversion for the output of a charge-coupled device (CCD) array. The primary CCD channel provides correlated double sampling (CDS) to extract the video information from the pixels, 6-dB to 42-dB gain range with digital control for varying illumination conditions, and black level clamping for an accurate black level reference. Input signal clamping and offset correction of the input CDS are also performed. The stable gain control is linear in dB. Additionally, the black level is quickly recovered after gain change.

The VSP2270Y device is available in a 48-lead LQFP package and the VSP2270M device is available in a 48-lead P-VQFN package. Both devices operate from a single 3-V/3.3-V supply.
