VSP2260

Features: CCD SIGNAL PROCESSING: Correlated Double Sampling (CDS) Programmable Black Level Clamping PROGRAMMABLE GAIN AMPLIFIER (PGA): 6dB to +42dB Gain Ranging 10-BIT DIGITAL DATA OUTPUT: Up to 20MHz Conversion Rate No Missing Codes 79dB SIGNAL-TO-NOISE RATIO PORTABLE OPERATION: Low Voltage: 2.7...

product image

VSP2260 Picture
See larger image
SeekIC No. : 004543718 Detail

VSP2260: Features: CCD SIGNAL PROCESSING: Correlated Double Sampling (CDS) Programmable Black Level Clamping PROGRAMMABLE GAIN AMPLIFIER (PGA): 6dB to +42dB Gain Ranging 10-BIT DIGITAL DATA OUTPUT: Up to 20...

VSP2260 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VSP2260
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

CCD SIGNAL PROCESSING: Correlated Double Sampling (CDS) Programmable Black Level Clamping
PROGRAMMABLE GAIN AMPLIFIER (PGA): 6dB to +42dB Gain Ranging
10-BIT DIGITAL DATA OUTPUT: Up to 20MHz Conversion Rate No Missing Codes
79dB SIGNAL-TO-NOISE RATIO
PORTABLE OPERATION: Low Voltage: 2.7V to 3.6V Low Power: 83mW (typ) at 3.0V Stand-By Mode: 6mW




Pinout

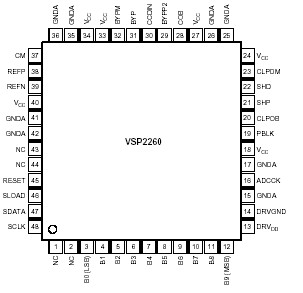

Connection Diagram


Specifications

Supply Voltage: VCC, DRVDD .......................................................... +4.0V
Supply-Voltage Differences: Among VCC ........................................ ±0.1V
Ground-Voltage Differences: Among GNDA .................................... ±0.1V
Digital Input Voltage .......................................................... 0.3 to +5.3V
Analog Input Voltage .................................................. 0.3 to VCC + 0.3V
Input Current (Any Pins Except Supplies) ..................................... ±10mA
Ambient Temperature Under Bias .................................... 40 to +125°C
Storage Temperature ...................................................... 55 to +125°C
Junction Temperature ................................................................. +150°C
Lead Temperature (Soldering, 5s) .............................................. +260°C
Package Temperature (IR Reflow, Peak, 10s) ............................. +235°C


Description

The VSP2260 is a complete mixed-signal processing IC for digital cameras, providing signal conditioning and Analog-to-Digital (A/D) conversion for the output of a CCD array. The primary CCD channel provides Correlated Double Sampling (CDS) to extract video information from the pixels, 6dB to +42dB gain range with digital control for varying illumination conditions, and black level clamping for an accurate black level reference. Input signal clamping and offset correction of the input CDS are also performed. The stable gain control is linear in dB. Additionally, the black level is quickly recovered after gain change. The VSP2260Y is available in an LQFP-48 package and operates from a single +3V/+3.3V supply.
