Features:

Loss of Lock Indicator
Multi-Rate OC-3, OC-12, OC-24, OC-48 Clock  and Data Recovery
Exceeds SONET/SDH Requirements for Jitter  Tolerance, Jitter Transfer and Jitter Generation.
Supports Gigabit Ethernet
3.3V Supply Operation
Differential Back Terminated  I/O
1W Typical Power
Maintains Clock Output in the Absence of Data
64-pin , 10x10mm PQFP Packaging
Selectable Reference Clock


Pinout

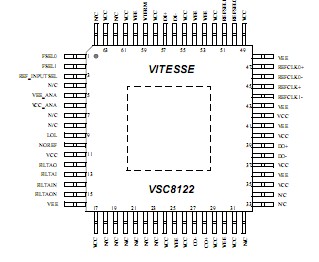

Connection Diagram


Specifications

Power Supply Voltage (VCC )........................................................................................-0.5V to +3.8V
DC Input Voltage (differential inputs)....................................................................-0.5V to VCC +0.5V
DC Input Voltage (TTL inputs)......................................................................................-0.5V to +5.5V
DC Output Voltage (TTL outputs).........................................................................-0.5V to VCC + 0.5V
Output Current (TTL outputs)............................................................................................... +/-50mA
Output Current (differential outputs)....................................................................................+/-50mA
Case Temperature Under Bias..................................................................................-55oC to +125oC


Description

The VSC8122 is a single-chip clock recovery IC for use in SONET OC-48, OC-24, OC-12, OC-3, or Giga- bit Ethernet systems operating at their respective 2.48832Gb/s, 1.24416Gb/s, 622.08Mbps, 155.52Mbps, or 1.25Gbps data rates. The VSC8122 complies with SONET jitter tolerance, jitter transfer and jitter generation specifications.

Alarm functions support typical telecom system applications. The Loss of Lock (LOL) output indicates when the device goes out of lock, which would most often occur in the event of a loss of valid data. The NOREF output flags when the reference input to the VSC8122 either is removed, or goes severely out of tolerance.
