VSC7969

Power Supply Voltage (V_CCS)............................ 3.6V
Power Supply Voltage (V_CCD) ........................... 5.5V
Junction Temperature Range ........... -40 to +125
Storage Temperature Range ............ -40 to +125
Relative Ambient Humidity ....................... 85%/+85

NOTE: (1) CAUTION: Stresses listed under "Absolute Maximum Ratings" may be applied to devices one at a
           time without causing permanent damage. Functionality at or above the values listed is not implied. Exposure
           to these values for extended periods may affect device reliability.

The VSC7969 is a 3.125Gb/s transimpedance amplifier IC with a built-in limiting amplifier, a signal detect feature and a photocurrent monitor. The VSC7969 does not require any external electrical components in the construction of a high performance optical receiver such as for SONET/SDH applications. The analog output is a differential signal with a minimum amplitude of 200mVp-p (single-ended). The VSC7969 operates with a single power supply with a maximum power dissipation of 300mW. A PIN photodiode or APD can be connected and separately biased to provide optimal performance.

The VSC7969 provides filtered bias for MSM and PIN photodetectors; applications using an APD photodetector must supply bias separately. The VSC7969 also provides a photocurrent monitor whose output is linearly proportional to the input photocurrent.

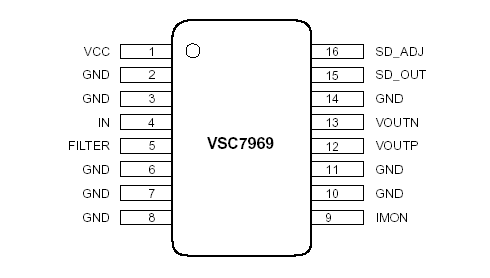

The VSC7969 can operate from a single +3.3V supply or a +5V or -5.2V supply. The VSC7969 is offered in die form and in a 16-pin plastic thin-shrink small outline package (TSSOP-16). A fully tested TO-46 outline packaged receiver with a photodetector is also available.
