Features:

• Speed Selectable Full-Duplex Transceiver:
- 1.06/2.12Gb/s for FibreChannel
- 1.25/2.5Gb/s for Gigabit Ethernet
• 20-Bit TTL Interface for Transmit and Receive Data at 125MHz
• Monolithic Clock Synthesis and Clock Recovery - No External Components
• 125MHz TTL Reference Clock
• Automatic Lock-to-Reference Function
• Suitable for Both Coaxial and Optical Link Applications
• Low Power Operation: 2.5 W max
• 80-Pin, 14mm Thermally-Enhanced EDQUAD Package
• Single +3.3V Supply



Pinout

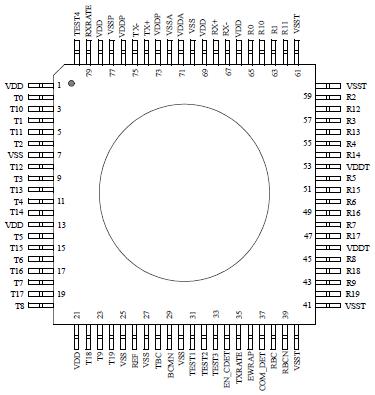

  Connection Diagram


Specifications

Power Supply Voltage, (VDD) .............................................................................................................-0.5V to +4V
DC Input Voltage (Differential inputs)...................................................................................... -0.5V to VDD +0.5V
DC Input Voltage (TTL inputs) .................................................................................................. -0.5V to VDD+0.5V
DC Output Voltage (TTL Outputs)............................................................................................ -0.5V to VDD + 0.5V
Output Current (TTL Outputs) ................................................................................................................... ±50mA
Output Current (Differential Outputs)..........................................................................................................±50mA
Case Temperature Under Bias ..................................................................................................... -55oC to +125oC
Storage Temperature.................................................................................................................... -65oC to +150oC
Relative Humidity (Storage).......................................................................................... 0% - 95% (Non-condensing)
Relative Humidity (Operating).................................................................................................................... 8% - 80%
Maximum Input ESD (Human Body Model).....................................................................................................1500V(2)
NOTES: (1) CAUTION: Stresses listed under "Absolute Maximum Ratings" may be applied to devices one at a time without causing permanent damage. Functionality at or above the values listed is not implied.Exposure to these values for extended periods may affect device reliability.
(2) High-speed PECL receiver inputs only are rated at 700V.



Description

The VSC7146_1272017 is a 2.5Gb/s Transceiver optimized for ease-of-use and efficiency in high-performance data transmission systems. The VSC7146 accepts two 10-bit 8b/10b encoded transmit characters, latches them on the rising edge of Transmit Byte Clock (TBC) and serializes the data onto the TX+/- differential outputs at a baud rate, which is 20 times the TBC frequency. The VSC7146_1272017 also samples serial receive data on the RX+/- ifferential inputs, recovers the clock and data, deserializes it onto two 10-bit receive characters, outputs a recovered clocks at one-twentieth of the incoming baud rate and detects Fibre Channel "comma" characters. The VSC7146 contains on-chip Phase-Lock Loop (PLL) circuitry for synthesis of the baud-rate transmit clock, and extraction of the clock from the received serial stream. These circuits are fully monolithic and require no external components.
