VSB06P12LCI

Features: ✔ 600 Watts Peak Pulse Power per Line (tp=10/1000s)✔ 100A (2/10s) per Bellcore GR-1089 (Intra-Building)✔ Isolated VSIP® Technology✔ ESD Protection > 40 kilovolts✔ High Surge Capability✔ Lead Spacing of 0.100 ✔ Available in 3 Voltage...

product image

VSB06P12LCI Picture
See larger image
SeekIC No. : 004543290 Detail

VSB06P12LCI: Features: ✔ 600 Watts Peak Pulse Power per Line (tp=10/1000s)✔ 100A (2/10s) per Bellcore GR-1089 (Intra-Building)✔ Isolated VSIP® Technology✔ ESD Protection > 40 k...

VSB06P12LCI Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VSB06P12LCI
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

✔ 600 Watts Peak Pulse Power per Line (tp=10/1000s)
✔ 100A (2/10s) per Bellcore GR-1089 (Intra-Building)
✔ Isolated VSIP® Technology
✔ ESD Protection > 40 kilovolts
✔ High Surge Capability
✔ Lead Spacing of 0.100"
✔ Available in 3 Voltages: 5V, 6.5V & 12V
✔ LOW CAPACITANCE: < 50pF


Application

✔ RS-232 and RS-423 Data Lines
✔ T1/E1 & T3/E3
✔ ATM Circuit Interfaces
✔ ADSL/HDSL & ISDN Interfaces
✔ V.34/V.90
✔ Cable Modem Intra-Structure Protection


Pinout

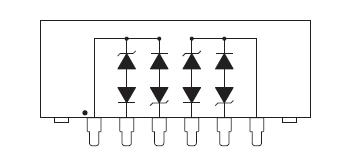

Connection Diagram


Specifications

PARAMETER
SYMBOL
VALUE
UNITS
Peak Pulse Power (tp =10/1000s) - See Figure 1
PPP
600
Watts
Operating Temperature
TJ
-55 to 150
Storage Temperature
TSTG
-55 to 150
