VS1003

Features: Decodes MPEG 1 & 2 audio layer III (CBR +VBR +ABR); WMA 4.0/4.1/7/8/9 all pro- files (5-384kbps); WAV (PCM + IMA ADPCM); General MIDI / SP-MIDI files Encodes IMA ADPCM from microphone or line input Streaming support for MP3 and WAV Bass and treble controls Operates with a single clo...

product image

VS1003 Picture
See larger image
SeekIC No. : 004543175 Detail

VS1003: Features: Decodes MPEG 1 & 2 audio layer III (CBR +VBR +ABR); WMA 4.0/4.1/7/8/9 all pro- files (5-384kbps); WAV (PCM + IMA ADPCM); General MIDI / SP-MIDI files Encodes IMA ADPCM from microphone...

VS1003 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VS1003
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Decodes MPEG 1 & 2 audio layer III (CBR +VBR +ABR); WMA 4.0/4.1/7/8/9 all pro- files (5-384kbps); WAV (PCM + IMA ADPCM); General MIDI / SP-MIDI files
Encodes IMA ADPCM from microphone or line input
Streaming support for MP3 and WAV
Bass and treble controls
Operates with a single clock 12..13 MHz.
Internal PLL clock multiplier
Low-power operation
High-quality on-chip stereo DAC with no phase error between channels
Stereo earphone driver capable of driving a 30­ load
Separate operating voltages for analog, digital and I/O
5.5 KiB On-chip RAM for user code / data
Serial control and data interfaces
Can be used as a slave co-processor
SPI flash boot for special applications
UART for debugging purposes
New functions may be added with software and 4 GPIO pins


Pinout

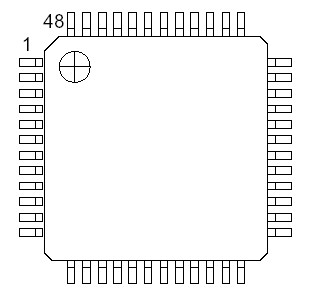

Connection Diagram


Specifications

Parameter
Symbol
 Min
Max
Unit
Analog Positive Supply
AVDD
-0.3
3.6
V
Digital Positive Supply
CVDD
-0.3
2.7
V
I/O Positive Supply
IOVDD
-0.3
3.6
V
Current at Any Digital Output


±50
mA
Voltage at Any Digital Input

-0.3
IOVDD+0.31
V
Operating Temperature


-40
+85
°C
Storage Temperature


-65
+150
°C

1 Must not exceed 3.6 V


Description

VS1003 is a single-chip MP3/WMA/MIDI audio decoder and ADPCM encoder. It contains a highperformance, proprietary low-power DSP processor core VS DSP4, working data memory, 5 KiB instruction RAM and 0.5 KiB data RAM for user applications, serial control and input data interfaces, 4 general purpose I/O pins, an UART, as well as a high-quality variable-sample-rate mono ADC and stereo DAC, followed by an earphone amplifier and a ground buffer.

VS1003 receives its input bitstream through a serial input bus, which it listens to as a system slave. The input stream is decoded and passed through a digital volume control to an 18-bit oversampling, multi-bit, sigma-delta DAC. The decoding is controlled via a serial control bus. In addition to the basic decoding, it is possible to add application specific features, like DSP effects, to the user RAM memory.
