Product Details

Description



Features:

· 80C51/80C52 pin compatible
· 12 clock periods per machine cycle
· 4KB on-chip Flash memory
· 128 bytes on-chip data RAM
· 32 I/O lines: P0-P3 = 8-bit
· Full duplex serial port (UART)
· 3, 16-bit Timers/Counters
· Watchdog Timer
· 8-bit Unsigned Division / Multiply
· BCD arithmetic
· Direct and Indirect Addressing
· Two levels of interrupt priority and nested interrupts
· Power saving modes
· Code protection function
· Operates at a clock frequency of up to 40MHz
· Low EMI (inhibit ALE)
· Programming voltage: 12V
· Industrial Temperature range (-40°C to +85°C)
· 5V and 3V versions available (see ordering information.)

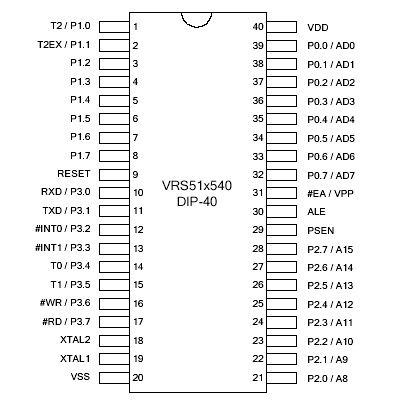

Pinout

Connection Diagram


Description

The VRS51x540 is a low cost 8-bit microcontroller based on the standard 80C51 microcontroller family architecture.

It is pin compatible and is a drop-in replacement for standard 8051 MCUs Aimed at cost effective applications requiring small amounts of program/data memory coupled with streamlined peripheral support, the VRS51x540 includes 4KB of Flash memory, 128 bytes of RAM a UART, three 16-bit timers, a Watchdog timer and power down features.

The VRS51x540 is available in 5 (VRS51C540) and 3.3 (VRS51L540) volt versions in PLCC-44, QFP-44 and DIP-40 packages. The VRS51x540 devices operate over the entire industrial temperature range. The Flash memory can be programmed using programmers available from Ramtron or other 3rd party commercial programmers.
