VRS1000

Features: · General 80C51/80C52 family compatible· 64kB byte on-chip Flash memory· In-System Programming (ISP) capability of Flash· Program voltage: 5V· 1024 bytes on chip data RAM· Four 8-bit I/Os + one 4-bit I/O· 5-Channel PWM on P1.3 to P1.7· Full duplex serial port (UART)· Three 16-bit Timers/...

product image

VRS1000 Picture
See larger image
SeekIC No. : 004543147 Detail

VRS1000: Features: · General 80C51/80C52 family compatible· 64kB byte on-chip Flash memory· In-System Programming (ISP) capability of Flash· Program voltage: 5V· 1024 bytes on chip data RAM· Four 8-bit I/Os ...

VRS1000 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VRS1000
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· General 80C51/80C52 family compatible
· 64kB byte on-chip Flash memory
· In-System Programming (ISP) capability of Flash
· Program voltage: 5V
· 1024 bytes on chip data RAM
· Four 8-bit I/Os + one 4-bit I/O
· 5-Channel PWM on P1.3 to P1.7
· Full duplex serial port (UART)
· Three 16-bit Timers/Counters
· Watch Dog Timer
· Bit operation instruction
· 8-bit Unsigned Multiply and Division instructions
· BCD arithmetic
· Direct and Indirect Addressing
· Two Levels of Interrupt Priority and Nested Interrupts
· Power saving modes:
· Code protection function
· Low EMI (inhibit ALE)
· Industrial Temperature range (-40ºC to +85ºC)
· 5V version available


Pinout

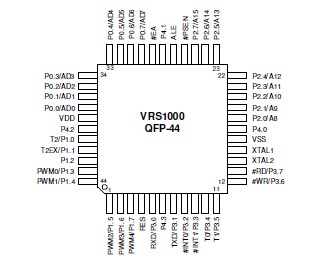

Connection Diagram


Description

The VRS1000 is an 8-bit microcontroller with 64kB Flash and 1kB of RAM. It includes an In-System / In- Application Programmable (ISP/IAP) function and is based on the architecture of the standard 80C51 microcontroller.

Each device contains a small ISP program residing in the upper section of the Flash memory that allows In- System Programming of the Flash memory from the  processor itself or through the UART interface.

The VRS1000's features and powerful instruction set make it a versatile and cost effective controller for applications that require non volatile data storage or that require the ability to perform its own Firmware code update.

The on-chip Flash memory can be programmed via a serial interface using the ISP feature. Programming of the VRS1000 is supported by programmers available from Goal Semiconductor or other 3rd party commercial programmers.

The VRS1000 is available in PLCC-44 or QFP-44 packages in industrial temperature range.
