VRE304

Features: • 4.500 V OUTPUT ± 0.450 mV (.01%)• TEMPERATURE DRIFT: 0.6 ppm/°C• LOW NOISE: 3µV p-p (0.1-10Hz)• INDUSTRY STD PINOUT- 8 PIN DIP OR SURFACE MOUNT PACKAGE• EXCELLENT LINE REGULATION: 6ppm/V Typ.• OUTPUT TRIM CAPABILITYPinoutSpecifications Out...

product image

VRE304 Picture
See larger image
SeekIC No. : 004542993 Detail

VRE304: Features: • 4.500 V OUTPUT ± 0.450 mV (.01%)• TEMPERATURE DRIFT: 0.6 ppm/°C• LOW NOISE: 3µV p-p (0.1-10Hz)• INDUSTRY STD PINOUT- 8 PIN DIP OR SURFACE MOUNT PACKAGE̶...

VRE304 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VRE304
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 4.500 V OUTPUT ± 0.450 mV (.01%)
• TEMPERATURE DRIFT: 0.6 ppm/°C
• LOW NOISE: 3µV p-p (0.1-10Hz)
• INDUSTRY STD PINOUT- 8 PIN DIP OR SURFACE MOUNT PACKAGE
• EXCELLENT LINE REGULATION: 6ppm/V Typ.
• OUTPUT TRIM CAPABILITY

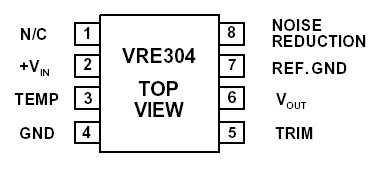

Pinout

Connection Diagram




Specifications

Output (V) Initial Error (mV) Temperature Coefficient (ppm/°C) Noise (µVpp) Feature Package
4.5 0.4, 0.7, 0.9 0.6, 1, 2 3 Low Cost 8 SMT


Power Supply
Operating Temp. (A,B,C)
Operating Temp. (J,K,L)
Storage Temperature
Short Circuit Protection
+13.5
0
-40
-65
+15
+22
+70
+85
+150
V
°C
°C
°C
Continuous





Description

The VRE304 is a low cost, high precision +4.5 V reference. Available in an industry standard 8-pin surface mount package, the device is ideal for upgrading systems that use lower performance references. The device provides ultrastable +4.5 V output with ±0.4500 mV (.01%) initial accuracy and a temperature coefficient of 0.6 ppm/°C. This improvement in accuracy is made possible by a unique, patented multipoint laser compensation technique. Significant improvements have been made in other performance parameters as well, including initial accuracy, warm-up drift, line regulation, and long-term stability.

Applications

The VRE304 is recommended for use as a reference for 14, 16, or 18 bit D/A converters which require an external precision reference. The device is also ideal for calibrating scale factor on high resolution A/D converters. The VRE304 offers superior performance over monolithic references.
