VP5313

Features: Converts Y, Cr, Cb data to analog RGB and composite or S-video and composite video Supports CCIR recommendations 601 and 656 All digital video encoding Selectable master/slave mode for sync signals Switchable chrominance bandwidth CCIR 624 PAL SMPTE or 170M NTSC compatible outputs GENLO...

product image

VP5313 Picture
SeekIC No. : 004542596 Detail

VP5313: Features: Converts Y, Cr, Cb data to analog RGB and composite or S-video and composite video Supports CCIR recommendations 601 and 656 All digital video encoding Selectable master/slave mode for sy...

floor Price/Ceiling Price

Part Number:
VP5313
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Converts Y, Cr, Cb data to analog RGB and composite or S-video and composite video
Supports CCIR recommendations 601 and 656
All digital video encoding
Selectable master/slave mode for sync signals
Switchable chrominance bandwidth
CCIR 624 PAL SMPTE or 170M NTSC compatible outputs
GENLOCK mode
I2C bus serial microprocessor interface
Only VP5313 supports Macrovision anti-taping Rev. 7.01
Line 21 Closed Caption encoding
Teletext insertion, fully line programmable



Application

Digital Cable TV
Digital Satellite TV
Multi-media
Video games
Digital VCRs
Karaoke



Pinout

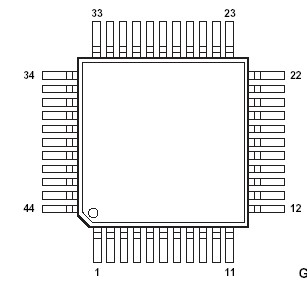

  Connection Diagram


Specifications

Supply voltage VDD, AVDD
Voltage on any non power pin
Ambient operating temperature
Storage temperature
-0·3 to 7·0V
-0·3 to VDD+0·3V
0 to 70°C
-55°C to 150°C
