VNQ860SP

Rise Time :
Fall Time :
Supply Voltage - Max :
Product :
Mounting Style : SMD/SMT
Packaging : Tube
Supply Voltage - Min : 5.5 V
Maximum Operating Temperature : + 150 C
Package / Case : PowerSO-10
Maximum Power Dissipation : 90000 mW
Type : Channel High Side Driver
Supply Current : 120 mA

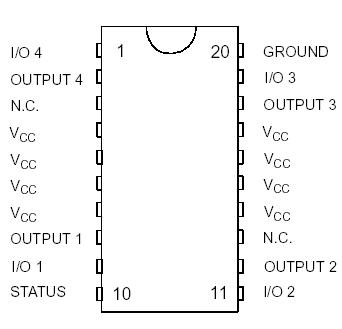

Pinout




Specifications

Symbol		Parameter	Value		Unit
			SO-20	PowerSO-10
VCC		DC Supply voltage	41		V
-VCC		Reverse DC supply voltage	-0.3		V
- IGND		DC reverse ground pin current	-200		mA
IOUT		DC Output current	Internally Limited		A
- IOUT		Reverse DC output current	-15		A
IIN		DC Input current	+/- 10		mA
VIN		Input voltage range	-3/+VCC		V
VSTAT		DC Status voltage	+ VCC		V
VESD		Electrostatic discharge(R=1.5K; C=100pF)	2000		V
Ptot		Power dissipation TC=25°C	16	90	W
Tj		Junction operating temperature	Internally Limited
TC		Case operating temperature	- 40 to 150
Tstg		Storage Temperature	-55 to 150

Description

The VNQ860, VNQ860SP are monolithic devices made using| STMicroelectronics VIPower M0-3 Technology, intended for driving any kind load with one side connected to ground. Active current limitation combined with thermal shutdown and automatic restart protect the device against overload. Device automatically turns off in case of ground pin disconnection. This  VNQ860, VNQ860SP device is especially suitable for industrial applications in norms conformity with IEC1131 (Programmable Controllers International Standard).

Parameters:

Technical/Catalog Information	VNQ860SP
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	PowerSO-10 Exposed Bottom Pad
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	5.5 V ~ 36 V
On-State Resistance	270 mOhm
Current - Output / Channel	250mA
Current - Peak Output	700mA
Packaging	Tube
Input Type	Non-Inverting
Number of Outputs	4
Operating Temperature	-40°C ~ 150°C
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	VNQ860SP VNQ860SP 497 4502 5 ND 49745025ND 497-4502-5
