Product Details

Description



Features:

CMOS COMPATIBLE INPUTS
OPEN DRAIN STATUS OUTPUTS
ON STATE OPEN LOAD DETECTION
OFF STATE OPEN LOAD DETECTION
SHORTED LOAD PROTECTION
UNDERVOLTAGE AND OVERVOLTAGE SHUTDOWN
LOSS OF GROUND PROTECTION
VERY LOW STAND-BY CURRENT
REVERSE BATTERY PROTECTION (**)

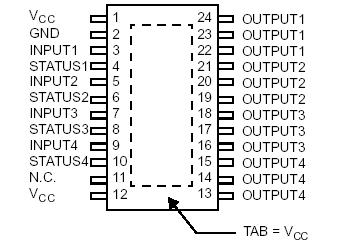

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Value
Units
DC supply voltage
VCC
41
V
Reverse DC supply voltage
VC
0.3
MA
DC reverse ground pin current
 -IGND
200
A
DC output current
IOUT
Internally limited
mA
Reverse DC output current
- IOUT
24
mA
DC input current

IIN
+/- 10
mA
DC current sense disable input current
ICSD
DC reverse CS pin current
-ICSENSE
+/- 10
°C/W
Current sense maximum voltage
VCSENSE
VCC - 41 to +VCC


V
Maximum switching energy (single pulse)
(L = 0.3mH; RL = 0?; Vbat = 13.5V; Tjstart = 150°C;
IOUT = IlimL(Typ.) )
E MAX(1)
109
mJ
Electrostatic Discharge (Human Body Model: R=1.5KW; C=100pF)
- INPUT
- CURRENT SENSE
- OUTPUT
- VCC
VESD
4000
2000
5000
5000
V
V
V
V
V
Maximum Switching Energy
(L=0.11mH; RL=0W; Vbat=13.5V; Tjstart=150ºC; IL=40A)
VESD
Internally Limited
V
Junction operating temperature
Tj
-40 to 150
°C
Storage temperature
Tstg
-55 to 150
°C



Description

The VNQ830PEP is a monolithic device designed in STMicroelectronics VIPower M0-3 Technology, intended for driving any kind of load with one side connected to ground. Active VCC pin voltage clamp protects the deviceagainst low energy spikes (see ISO7637 transient compatibility table). Active current limitation combined with thermal shutdown and automatic restart protects the device against overload. The VNQ830PEP device detects open load condition both in on and off state. Output shorted to VCC is detected in the off state.Device automatically turns off in case of ground pin disconnection.
