Product Details

Description

Features:

CMOS COMPATIBLE INPUTS
OPEN DRAIN STATUS OUTPUTS
ON STATE OPEN LOAD DETECTION
OFF STATE OPEN LOAD DETECTION
SHORTED LOAD PROTECTION
UNDERVOLTAGE AND OVERVOLTAGE SHUTDOWN
LOSS OF GROUND PROTECTION
VERY LOW STAND-BY CURRENT
REVERSE BATTERY PROTECTION (**)

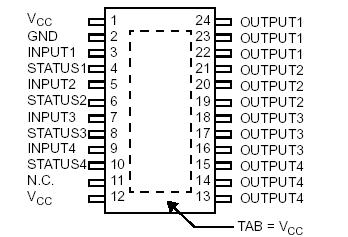

Pinout

Connection Diagram

Description

The VNQ810PEP is a monolithic device designed in STMicroelectronics VIPower M0-3 Technology, intended for driving any kind of load with one side connected to ground. Active VCC pin voltage clamp protects the deviceagainst low energy spikes (see ISO7637 transient compatibility table). Active current limitation combined with thermal shutdown and automatic restart protects the device against overload. The VNQ810PEP device detects open load condition both in on and off state. Output shorted to VCC is detected in the off state. Device automatically turns off in case of ground pin disconnection.
