VNQ690SP-E

On Time (Max) :
Off Time (Max) :
Mounting Style : SMD/SMT
Maximum Operating Temperature : + 150 C
Number of Outputs : 4
Supply Current (Max) : 6 mA
Package / Case : PowerSO-12
On Resistance (Max) : 90 mOhms
Operating Supply Voltage : 5.5 V to 36 V


Features:

OUTPUT CURRENT PER CHANNEL: 10A
CMOS COMPATIBLE INPUTS
OPEN LOAD DETECTION (OFF STATE)
UNDERVOLTAGE & OVERVOLTAGE
SHUT- DOWN
OVERVOLTAGE CLAMP
THERMAL SHUT-DOWN
CURRENT LIMITATION
VERY LOW STAND-BY POWER DISSIPATION
PROTECTION AGAINST:
LOSS OF GROUND & LOSS OF VCC
REVERSE BATTERY PROTECTION (**)
IN COMPLIANCE WITH THE 2002/95/EC
EUROPEAN DIRECTIVE

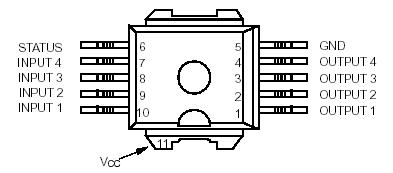

Pinout




Specifications

Parameter	Symbol	Value	Units
DC supply voltage	VCC	41	V
Reverse DC supply voltage	VC	0.3	MA
DC reverse ground pin current	-IGND	200	A
DC output current	IOUT	Internally limited	mA
Reverse DC output current	- IOUT	24	mA
DC input current	IIN	-1 to 10	mA
DC current sense disable input current	ICSD
DC reverse CS pin current	-ICSENSE	200	°C/W
Current sense maximum voltage	VCSENSE	VCC - 41 to +VCC	V
Maximum switching energy (single pulse) (L = 0.3mH; RL = 0?; Vbat = 13.5V; Tjstart = 150°C; IOUT = IlimL(Typ.) )	E MAX(1)	109	mJ
Electrostatic Discharge (Human Body Model: R=1.5KW; C=100pF) - INPUT - CURRENT SENSE - OUTPUT - VCC	VESD	4000 2000 5000 5000	V V V V V
Maximum Switching Energy (L=0.11mH; RL=0W; Vbat=13.5V; Tjstart=150ºC; IL=40A)	VESD	53	V
Junction operating temperature	Tj	-40 to 150	°C
Storage temperature	Tstg	-55 to 150	°C

Description

The VNQ690SP-E is a monolithic device made by using| STMicroelectronics VIPower M0-3 Technology, intended for driving resistive or inductive loads with one side connected to ground. This device has four independent channels. Built-in thermal shut down and output current limitation protect the VNQ690SP-E chip from over temperature and short circuit.
