VNQ600AP

Features: n DC SHORT CIRCUIT CURRENT: 22A CMOS COMPATIBLE INPUTS PROPORTIONAL LOAD CURRENT SENSEUNDERVOLTAGE & OVERVOLTAGE SHUT-DOWN OVERVOLTAGE CLAMPTHERMAL SHUT-DOWNCURRENT LIMITATION VERY LOW STAND-BY POWER DISSIPATION PROTECTION AGAINST: LOSS OF GROUND & LOSS OF VCC REVERSE BATTERY PRO...

product image

VNQ600AP Picture
See larger image
SeekIC No. : 004542447 Detail

VNQ600AP: Features: n DC SHORT CIRCUIT CURRENT: 22A CMOS COMPATIBLE INPUTS PROPORTIONAL LOAD CURRENT SENSEUNDERVOLTAGE & OVERVOLTAGE SHUT-DOWN OVERVOLTAGE CLAMPTHERMAL SHUT-DOWNCURRENT LIMITATION VERY LOW...

VNQ600AP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VNQ600AP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

n DC SHORT CIRCUIT CURRENT: 22A
CMOS COMPATIBLE INPUTS
PROPORTIONAL LOAD CURRENT SENSE
UNDERVOLTAGE & OVERVOLTAGE
SHUT-DOWN
OVERVOLTAGE CLAMP
THERMAL SHUT-DOWN
CURRENT LIMITATION
VERY LOW STAND-BY POWER DISSIPATION
PROTECTION AGAINST:
LOSS OF GROUND & LOSS OF VCC
REVERSE BATTERY PROTECTION (**)

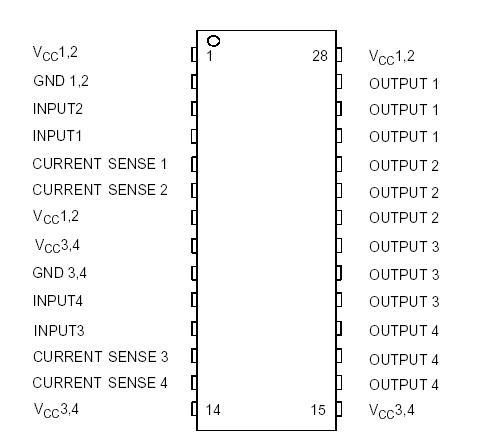

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Value
Units
DC supply voltage
VCC
41
V
Reverse DC supply voltage
VC
0.3
MA
DC reverse ground pin current
 -IGND
200
A
DC output current
IOUT
Internally limited
mA
Reverse DC output current
- IOUT
24
mA
DC input current

IIN
-1 to 10
mA
DC current sense disable input current
ICSD
DC reverse CS pin current
-ICSENSE
200
°C/W
Current sense maximum voltage
VCSENSE
VCC - 41 to +VCC


V
Maximum switching energy (single pulse)
(L = 0.3mH; RL = 0?; Vbat = 13.5V; Tjstart = 150°C;
IOUT = IlimL(Typ.) )
E MAX(1)
109
mJ
Electrostatic Discharge (Human Body Model: R=1.5KW; C=100pF)
- INPUT
- CURRENT SENSE
- OUTPUT
- VCC
VESD
4000
2000
5000
5000
V
V
V
V
V
Maximum Switching Energy
(L=0.11mH; RL=0W; Vbat=13.5V; Tjstart=150ºC; IL=40A)
VESD
750
V
Junction operating temperature
Tj
Internally Limited
°C
Storage temperature
Tstg
-55 to 150
°C



Description

The VNQ600AP is a quad HSD formed byassembling two VND600 chips in the same SO-28 package. The VND600 is a monolithic device designed in| STMicroelectronics VIPower M0-3 Technology. The VNQ600AP is intended for driving any type of multiple loads with one side connected to ground. This device has four independent channels and four analog sense outputs which deliver currents proportional to the outputs currents. Active current limitation combined with thermal shut-down and automatic restart protect the device against overload. Device automatically turns off in case of ground pin disconnection.
