VNQ600A

On Time (Max) :
Off Time (Max) :
Mounting Style : SMD/SMT
Maximum Operating Temperature : + 150 C
Number of Outputs : 4
Operating Supply Voltage : 5.5 V to 36 V
Supply Current (Max) : 40 mA
On Resistance (Max) : 35 mOhms
Package / Case : SO-28

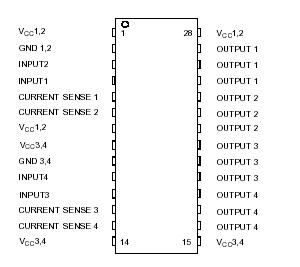

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	Supply voltage (continuous)	41	V
-VCC	Reverse supply voltage (continuous)	-0.3	V
IOUT	Output current (continuous), per each channel	15	A
IR	Reverse output current (continuous), per each channel	-15	A
IIN	Input current	+/- 10	mA
VCSENSE	Current sense maximum voltage	-3 +15	V V
IGND	Ground current at TC25°C (continuous)	-200	mA
VESD	Electrostatic Discharge (Human Body Model: R=1.5K; C=100pF) - INPUT - STATUS - OUTPUT - VCC	4000 2000 5000 5000	V V V V
EMAX	Maximum Switching Energy (L=0.11mH; RL=0; Vbat=13.5V; Tjstart=150ºC; IL=40A)	126	mJ
Ptot	Power dissipation (per island) at Tlead=25°C	6.25	W
Tj	Junction operating temperature	Internally Limited
Tstg	Storage Temperature	-55 to 150

Description

The VNQ600A is a quad HSD formed by assembling two VND600 chips in the same SO-28 package. The VND600 is a monolithic device designed in| STMicroelectronics VIPower M0-3 Technology. The VNQ600A is intended for driving any type of multiple loads with one side connected to ground. This device has four independent channels and four analog sense outputs which deliver currents proportional to the outputs currents. Active current limitation combined with thermal shut-down and automatic restart protect the device against overload. Device automatically turns off in case of ground pin disconnection.

Parameters:

Technical/Catalog Information	VNQ600A
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	28-SOIC (7.5mm Width)
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	5.5 V ~ 36 V
On-State Resistance	35 mOhm
Current - Output / Channel	15A
Current - Peak Output	40A
Packaging	Tube
Input Type	Non-Inverting
Number of Outputs	4
Operating Temperature	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	VNQ600A VNQ600A
