VND600PEP

Features: · DC SHORT CIRCUIT CURRENT: 25A· CMOS COMPATIBLE INPUTS· PROPORTIONAL LOAD CURRENT SENSE· UNDERVOLTAGE AND OVERVOLTAGE SHUT-DOWN· OVERVOLTAGE CLAMP· THERMAL SHUT-DOWN· CURRENT LIMITATION· VERY LOW STAND-BY POWER DISSIPATION· PROTECTION AGAINST:·LOSS OF GROUND AND LOSS OF VCC· REVERSE BAT...

product image

VND600PEP Picture
See larger image
SeekIC No. : 004542432 Detail

VND600PEP: Features: · DC SHORT CIRCUIT CURRENT: 25A· CMOS COMPATIBLE INPUTS· PROPORTIONAL LOAD CURRENT SENSE· UNDERVOLTAGE AND OVERVOLTAGE SHUT-DOWN· OVERVOLTAGE CLAMP· THERMAL SHUT-DOWN· CURRENT LIMITATION· ...

VND600PEP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VND600PEP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· DC SHORT CIRCUIT CURRENT: 25A
· CMOS COMPATIBLE INPUTS
· PROPORTIONAL LOAD CURRENT SENSE
· UNDERVOLTAGE AND OVERVOLTAGE SHUT-DOWN
· OVERVOLTAGE CLAMP
· THERMAL SHUT-DOWN
· CURRENT LIMITATION
· VERY LOW STAND-BY POWER DISSIPATION
· PROTECTION AGAINST:
·LOSS OF GROUND AND LOSS OF VCC
· REVERSE BATTERY PROTECTION (*)


Pinout

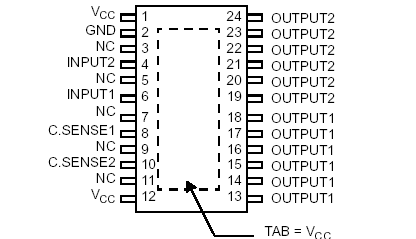

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VCC
 DC Supply Voltage
41
V
- VCC
 Reverse Supply Voltage
-0.3
V
- Ignd
 DC reverse ground pin current
-200
mA
IOUT
 Output Current
Internally limited
A
- IOUT
 Reverse Output Current
-21
A
IIN
 Input Current
+/- 10
mA
VCSENSE
 Current sense maximum voltage
-3
+15
V
V
VESD
 Electrostatic Discharge (Human Body Model: R=1.5KW; C=100pF)
- INPUT
- STATUS
- OUTPUT
- VCC
4000
2000
5000
5000
V
V
V
V
Ptot
 Power Dissipation TC=25
96
W
Tj
 Junction Operating Temperature
Internally limited
Tc
 Case Operating Temperature
- 40 to 150
Tstg
 Storage Temperature
- 55 to 150



Description

The VND600PEP is a monolithic device made using STMicroelectronics VIPower M0-3 technology. VND600PEP is intended for driving resistive or inductive loads with one side connected to ground. Active VCC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table). This device has two channels in high side configuration; each channel has an analog sense output on which the sensing current is proportional (according to a known ratio) to the corresponding load current. Built-in thermal shut-down and outputs current limitation protect
the VND600PEP chip from over temperature and short circuit. Device turns off in case of ground pin disconnection.
