VND5160J-E

Stressing the device above the ratings listed in the "Absolute maximum ratings" tables may cause permanent damage to the device. These are stress ratings only and operation of the device at these or any other conditions above those indicated in the Operating sections of this specification is not implied. Exposure to the conditions in this section for extended periods may affect device reliability. Refer also to the STMicroelectronics SURE Program and other relevant quality documents.

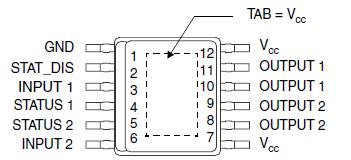

The VND5160J-E is a monolithic device made using STMicroelectronics VIPower M0-5 technology. It is intended for driving resistive or inductive loads with one side connected to ground. Active V_CC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table).

The device VND5160J-E detects open load condition in both ON and OFF states, when STAT_DIS is left open or driven low. Output shorted to V_CC is detected in the OFF state.When STAT_DIS is driven high, the STATUS pin is in a high impedance condition.Output current limitation protects the device in overload condition. In case of long duration overload, the device limits the dissipated power to safe level up to thermal shut-down intervention. Thermal shut-down with automatic restart allows the device to recover normal operation as soon as fault condition disappears.
