VND5012AK-E

Rise Time :
Fall Time :
Supply Voltage - Max :
Product :
Maximum Power Dissipation :
Package / Case :
Supply Current : 6 mA
Mounting Style : SMD/SMT
Supply Voltage - Min : 4.5 V
Packaging : Tube
Maximum Operating Temperature : + 150 C
Type : High Side


Features:

OUTPUT CURRENT: 40A
3.0V CMOS COMPATIBLE INPUT
CURRENT SENSE DISABLE
PROPORTIONAL LOAD CURRENT SENSE
UNDERVOLTAGE SHUT-DOWN
OVERVOLTAGE CLAMP
THERMAL SHUT DOWN
CURRENT AND POWER LIMITATION
VERY LOW STAND-BY CURRENT
PROTECTION AGAINST LOSS OF GROUND AND LOSS OF VCC
VERY LOW ELECTROMAGNETIC SUSCEPTIBILITY
OPTIMIZED ELECTROMAGNETIC EMISSION
REVERSE BATTERY PROTECTION (**)
IN COMPLIANCE WITH THE 2002/95/EC EUROPEAN DIRECTIVE

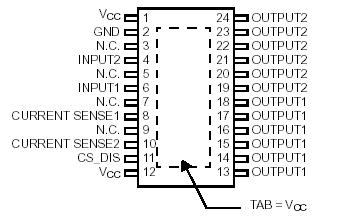

Pinout




Specifications

Parameter	Symbol	Value	Units
DC supply voltage	VCC	45	V
Reverse DC supply voltage	VC	-0.3	MA
DC reverse ground pin current	-IGND	-200	A
DC output current	IOUT	Internally limited	mA
Reverse DC output current	- IOUT	-30	mA
DC input current	IIN	-1 to 10	mA
DC current sense disable input current	ICSD	-1 to 10
Current sense maximum voltage	-ICSENSE	VCC-41 +VCC	°C/W
Electrostatic discharge (R=1.5kΩ; C=100pF)	VCSENSE	2000	V
Junction operating temperature	VESD	2	H
Case operating temperature	VESD		°C
Storage temperature	Tj	Internally Limited	°C
Single-pulse avalanche energy	Tstg	-55 to 150	°C

Description

The VND5012AK-E is a monolithic device made using STMicroelectronics VIPower technology. VND5012AK-E is intended for driving resistive or inductive loads with one side connected to ground. Active VCC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table).This device integrates an analog current sense which delivers a current proportional to the load current (according to a known ratio) when CS_DIS is driven low or left open.

When CS_DIS is driven high, the CURRENT SENSE pin is in a high impedance condition. Output current limitation protects the device in overload condition. In case of long overload duration, the VND5012AK-E device limits the dissipated power to safe level up to thermal shut-down intervention. Thermal shut-down with automatic restart allows the device to recover normal operation as soon as fault condition disappears.

Parameters:

Technical/Catalog Information	VND5012AK-E
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	PowerSSO-24
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	4.5 V ~ 36 V
On-State Resistance	12 mOhm
Current - Output / Channel	-
Current - Peak Output	60A
Packaging	Tube
Input Type	Non-Inverting
Number of Outputs	2
Operating Temperature	-40°C ~ 150°C
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	VND5012AK E VND5012AKE
