VN920PEP Selling Leads, Price trend, VN920PEP DataSheet download, circuit diagram from SeekIC.com

PinoutSpecifications Symbol Parameter Value Unit VCC DC Supply Voltage 41 V -VCC Reverse DC Supply Voltage -0.3 V - IGND DC Reverse Ground Pin Current -200 mA IOUT DC Output current Internally Limited A -IOUT Reverse DC Output Current -4...

See larger image

SeekIC No. : 004542419 Detail

VN920PEP: PinoutSpecifications Symbol Parameter Value Unit VCC DC Supply Voltage 41 V -VCC Reverse DC Supply Voltage -0.3 V - IGND DC Reverse Ground Pin Current -200 m...

VN920PEP Data Sheet

Get Latest Price

Part Number:: VN920PEP
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

VN920 evaluate
US $1.55 - 2.35 / Piece

Power Driver ICs 30A 36V High Side
VN920(012Y) evaluate
US $1.02 - 1.33 / Piece

Power Driver ICs 30A 36V High Side
VN920-12-E evaluate
US $1.02 - 1.33 / Piece

Power Driver ICs 30A 36V HIGH SIDE

Product Details

Description

Pinout

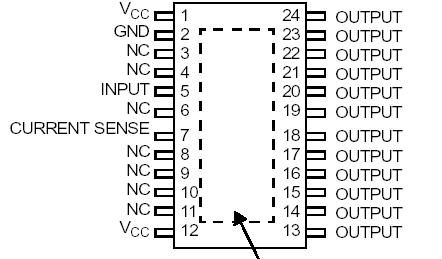

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	DC Supply Voltage	41	V
-V_CC	Reverse DC Supply Voltage	-0.3	V
- I_GND	DC Reverse Ground Pin Current	-200	mA
I_OUT	DC Output current	Internally Limited	A
-I_OUT	Reverse DC Output Current	-40	A
I_IN	DC Input Current	+/- 10	mA
V_CSENSE	Current Sense Maximum Voltage	-3 +15	V V
V_ESD	Electrostatic Discharge (Human Body Model: R=1.5K; C=100pF) - INPUT - CURRENT SENSE - OUTPUT - V_CC	4000 2000 5000 5000	V V V V
P_tot	Power dissipation T_C25°C	96	W
T_j	Junction operating temperature	Internally Limited
T_c	Case Operating Temperature	- 40 to 150
T_STG	Storage Temperature	-55 to 150

Description

The VN920PEP is a monolithic device designed in STMicroelectronics VIPower M0-3 Technology,intended for driving any kind of load with one side connected to ground. Active V_CC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table). Active current limitation combined with thermal shutdown and automatic restart protect the device against overload. The VN920PEP device integrates an analog current sense output which delivers a current proportional to the load current.Device automatically turns off in case of ground pin disconnection.
