VN920DSO

PinoutSpecifications Symbol Parameter Value Unit P2PAK SO-16L VCC DC Supply Voltage 41 V -VCC Reverse DC Supply Voltage -0.3 V - IGND DC Reverse Ground Pin Current -200 mA IOUT DC Output current Internally Limited A -IOUT Reverse DC Out...

product image

VN920DSO Picture
See larger image
SeekIC No. : 004542418 Detail

VN920DSO: PinoutSpecifications Symbol Parameter Value Unit P2PAK SO-16L VCC DC Supply Voltage 41 V -VCC Reverse DC Supply Voltage -0.3 V - IGND DC Reverse Ground Pin Cur...

VN920DSO Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VN920DSO
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

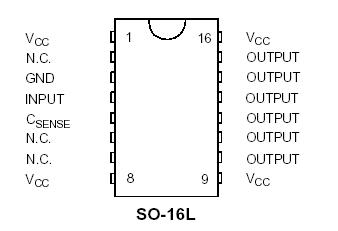

Connection Diagram


Specifications

Symbol Parameter Value Unit
P2PAK SO-16L

VCC

DC Supply Voltage

 41 V

-VCC

Reverse DC Supply Voltage

 -0.3 V

- IGND

 DC Reverse Ground Pin Current

-200

mA

IOUT

DC Output current

Internally Limited A

-IOUT

 Reverse DC Output Current

-25

A

IIN

DC Input Current

 +/- 10 mA
ISTAT

Current Sense Maximum Voltage

 +/- 10 V
V
VESD

Electrostatic Discharge (Human Body Model: R=1.5K; C=100pF)
- INPUT
- CURRENT SENSE
- OUTPUT
- VCC

 4000
4000
5000
5000		 V
V
V
V

EMAX

Maximum Switching Energy
(L=0.25mH; RL=0; Vbat=13.5V; Tjstart=150; IL=45A)

 364 352 mJ

Ptot

Power dissipation TC25°C

96.1

8.3

W

Tj

Junction operating temperature

 Internally Limited

Tc

 Case Operating Temperature

- 40 to 150

TSTG

Storage Temperature

 -55 to 150




Description

The VN920D-B5, VN920DSO are monolithic devices made by using STMicroelectronics VIPower M0-3 Technology, intended for driving any kind of load with one side connected to ground. Active VCC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table). Active current limitation combined with thermal shutdown and automatic restart protect the device against overload.

The VN920D-B5, VN920DSO device detects open load condition both is on and off state. Output shorted to VCC is detected in the off state. Device automatically turns off in case of ground pin disconnection.
